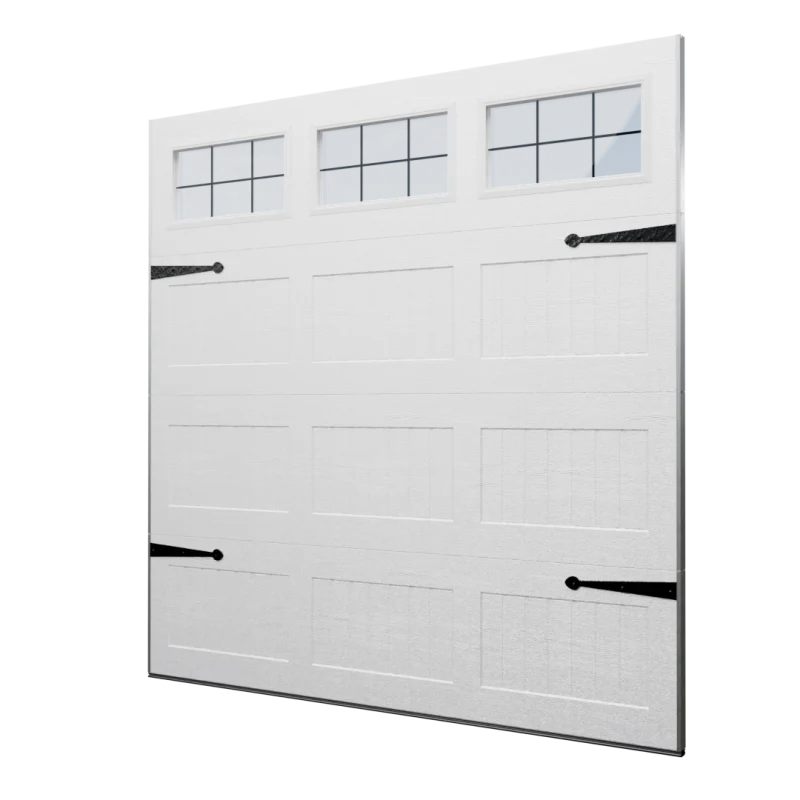

VINTAGE

The Vintage garage door series delivers a distinctive look of elegance, complimenting modern homes with a unique, refined traditional aesthetic.

VINTAGE DOOR SIZE CHART

The Vintage R-16 is 1-3/4” thick and comes in standard heights of 6’ through 10’, with the standard headroom requirement of 12”, however low headroom kits are available for special applications.

Width	Emboss Spaces Differ at Different Widths
8'
9'
10'
12'
16'
18'

Height

6'
6'5"
6'7"
6'8"
6'10"
7'
7'3"
7'6"
7'9"
8'
8'2"
8'4"
8'5"
8'7"
8'9"
9'
9'3"
9'6"
9'7"
9'9"
9'11"
10'

8' wide

8'x6'
8'x6'5"
8'x6'7"
8'x6'8"
8'x6'10"
8'x7'
8'x7'3"
8'x7'6"
8'x7'9"
8'x8'
8'x8'2"
8'x8'4"
8'x8'5"
8'x8'7"
8'x8'9"
8'x9'
8'x9'3"
8'x9'6"
8'x9'7"
8'x9'9"
8'x9'11"
8'x10'

9' wide

9'x6'
9'x6'5"
9'x6'7"
9'x6'8"
9'x6'10"
9'x7'
9'x7'3"
9'x7'6"
9'x7'9"
9'x8'
9'x8'2"
9'x8'4"
9'x8'5"
9'x8'7"
9'x8'9"
9'x9'
9'x9'3"
9'x9'6"
9'x9'7"
9'x9'9"
9'x9'11"
9'x10'

10' wide

10'x6'
10'x6'5"
10'x6'7"
10'x6'8"
10'x6'10"
10'x7'
10'x7'3"
10'x7'6"
10'x7'9"
10'x8'
10'x8'2"
10'x8'4"
10'x8'5"
10'x8'7"
10'x8'9"
10'x9'
10'x9'3"
10'x9'6"
10'x9'7"
10'x9'9"
10'x9'11"
10'x10'

12' wide

12'x6'
12'x6'5"
12'x6'7"
12'x6'8"
12'x6'10"
12'x7'
12'x7'3"
12'x7'6"
12'x7'9"
12'x8'
12'x8'2"
12'x8'4"
12'x8'5"
12'x8'7"
12'x8'9"
12'x9'
12'x9'3"
12'x9'6"
12'x9'7"
12'x9'9"
12'x9'11"
12'x10'

14' wide

14'x6'
14'x6'5"
14'x6'7"
14'x6'8"
14'x6'10"
14'x7'
14'x7'3"
14'x7'6"
14'x7'9"
14'x8'
14'x8'2"
14'x8'4"
14'x8'5"
14'x8'7"
14'x8'9"
14'x9'
14'x9'3"
14'x9'6"
14'x9'7"
14'x9'9"
14'x9'11"
14'x10'

16' wide

16'x6'
16'x6'5"
16'x6'7"
16'x6'8"
16'x6'10"
16'x7'
16'x7'3"
16'x7'6"
16'x7'9"
16'x8'
16'x8'2"
16'x8'4"
16'x8'5"
16'x8'7"
16'x8'9"
16'x9'
16'x9'3"
16'x9'6"
16'x9'7"
16'x9'9"
16'x9'11"
16'x10'

18' wide

18'x6'
18'x6'5"
18'x6'7"
18'x6'8"
18'x6'10"
18'x7'
18'x7'3"
18'x7'6"
18'x7'9"
18'x8'
18'x8'2"
18'x8'4"
18'x8'5"
18'x8'7"
18'x8'9"
18'x9'
18'x9'3"
18'x9'6"
18'x9'7"
18'x9'9"
18'x9'11"
18'x10'

NUMBER OF SECTIONS

DOOR HEIGHT	NUMBER OF 19.2" SECTIONS	NUMBER OF 21" SECTIONS	NUMBER OF 24" SECTIONS	TOTAL SECTIONS
6'			3	3
6'5"	4			4
6'7"	3	1		4
6'8"	2	2		4
6'10"	1	3		4
7'		4		4
7'3"		3	1	4
7'6"		2	2	4
7'9"		1	3	4
8'			4	4
8'2"	4	1		5
8'4"	3	2		5
8'5"	2	3		5
8'7"	1	4		5
8'9"		5		5
9'		4	1	5
9'3"		3	2	5
9'6"		2	3	5
9'7"	6			6
9'9"		1	4	5
9'11"	4	2		6
10'			5	5

NUMBER OF SECTIONS FOR ELITE COLOUR (Walnut)

DOOR HEIGHT	NUMBER OF 19.2" SECTIONS	NUMBER OF 21" SECTIONS	NUMBER OF 21.6" SECTIONS	NUMBER OF 24" SECTIONS	TOTAL SECTIONS
6'				3	3
6'5"	4				4
6'7"	3	1			4
6'8"	2	2			4
6'10"	1	3			4
7'		4			4
7'3"		3		1	4
7'6"		2		2	4
7'9"		1		3	4
8'				4	4
8'2"	4	1			5
8'4"	3	2			5
8'5"	2	3			5
8'7"	1	4			5
8'9"		5			5
9'			5		5
9'3"		3		2	5
9'6"		2		3	5
9'7"	6				6
9'9"		1		4	5
9'11"	4	2			6
10'				5	5

ABOUT OUR COLOURS

factory finish Colours

Every door is finished with a factory applied, baked on, two coat polyester paint finish giving years of maintenance free operation.

CUSTOM in-house PAINT

Your door may be custom painted to suit your home’s exterior colour specifications. Choose from a One-colour or Two-colour option, and our experienced team will paint your garage door in-house in Edmonton, ensuring attention to detail and a high-quality finish.

Colour matching process

Step 1: Decide your colour(s). Choose from a One-colour or Two-colour option.

Step 2: Your accurate information is key. We need your desired paint brand name, manufacturer and paint code. For more specific colours, bring a physical paint swatch card of your desired colour(s) to a Steel-Craft dealer along with the information listed above. Please note that paint swatches and Pantone colours can change yearly, colours may appear different year to year.

Step 3: For a Two-colour option, indicate which colour will be for the Door Face and Emboss.

Step 4: Once we receive your quote confirmation and colour sample information, we will match your desired colour in-house. For durability and cleaning purposes, we use a semi-gloss paint finish. We may decline matte paint requests. If we need additional information from you, our team will reach out.

For more details on custom paint options, contact Steel-Craft.

Note: The accuracy of the colours displayed may vary depending on the settings of your monitor. To obtain an exact colour reference of factory colours, please contact a Steel-Craft dealer for colour samples.

GLASS

PLAIN LITE
Available in 5/8” ThermoPane.
