PRAIRIE RIDGE
Prairie Ridge is available in Residential & Commercial applications.
Prairie Ridge adds depth and visual interest while maintaining a sleek look. Built for durability and performance, Prairie Ridge is perfect for homeowners looking to elevate curb appeal with a refined, structured aesthetic.
ABOUT OUR COLOURS

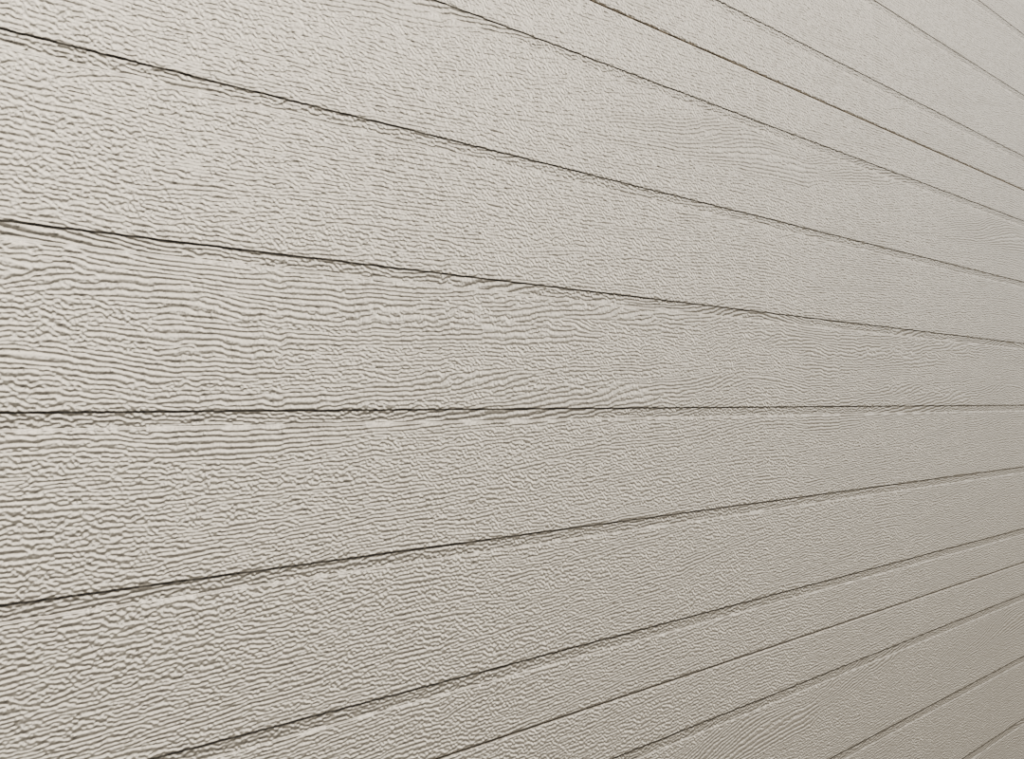

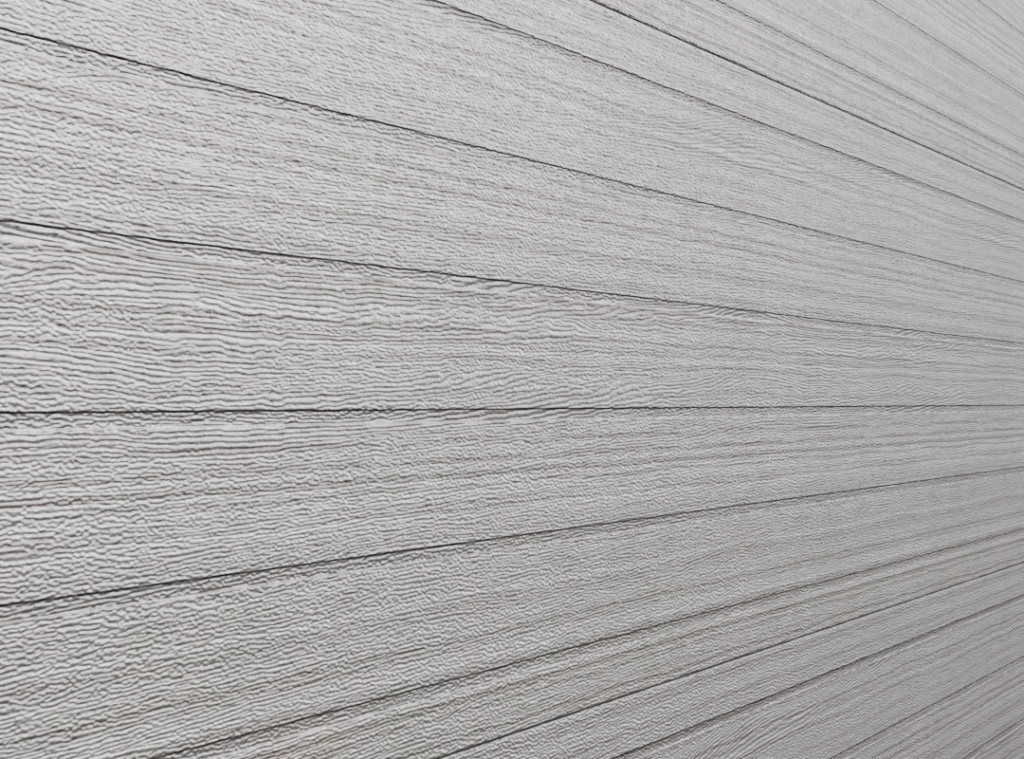

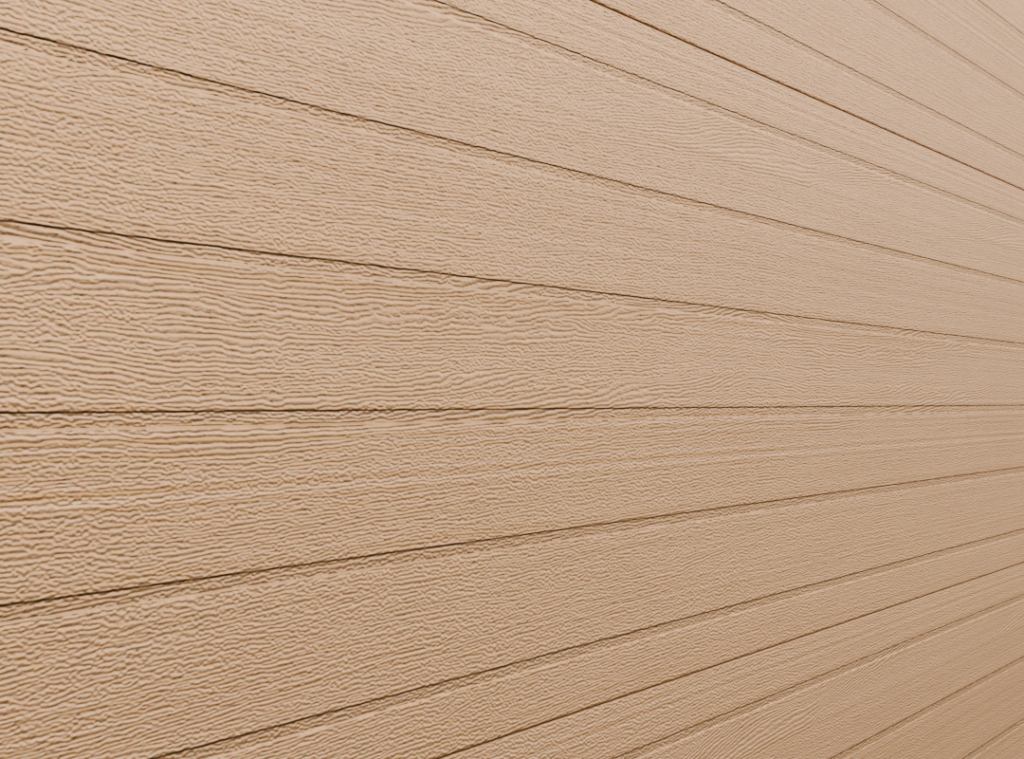

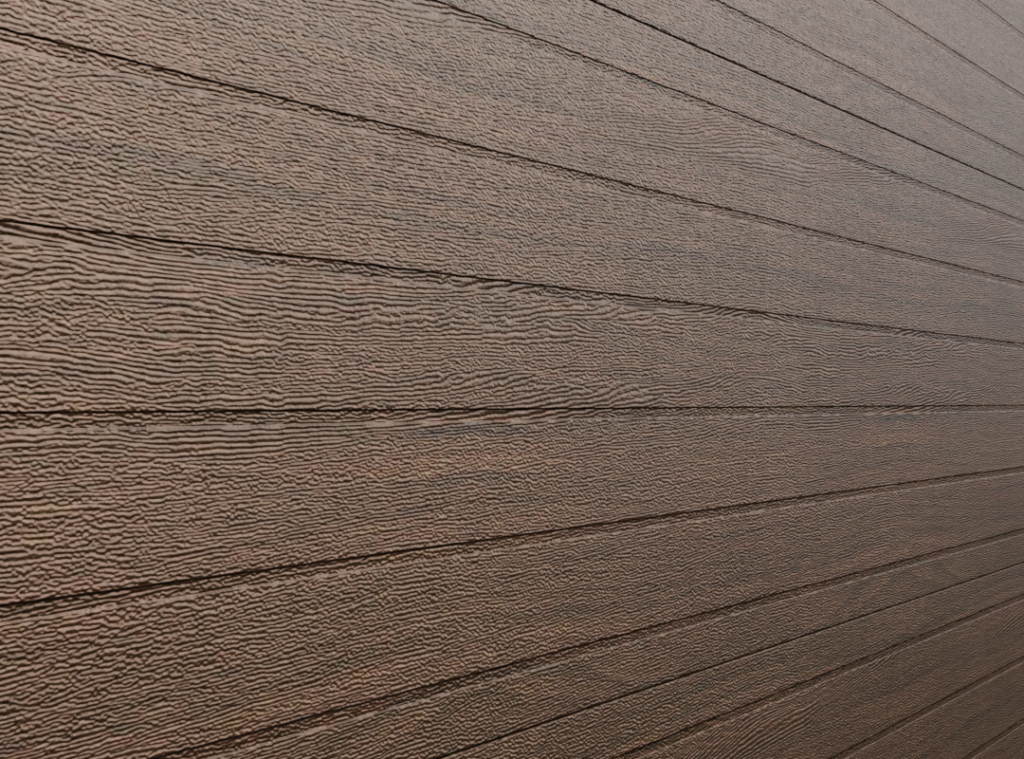

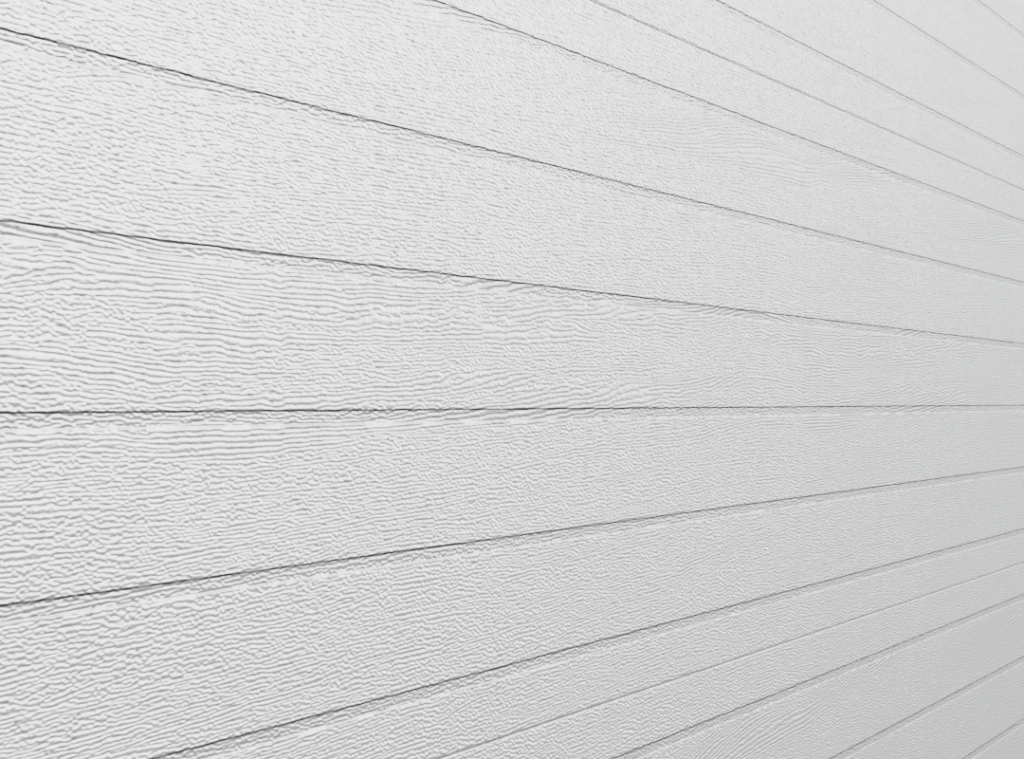

factory finish colour in woodgrain embossment
Every door is finished with a factory applied, baked on, two coat polyester paint finish giving years of maintenance free operation.

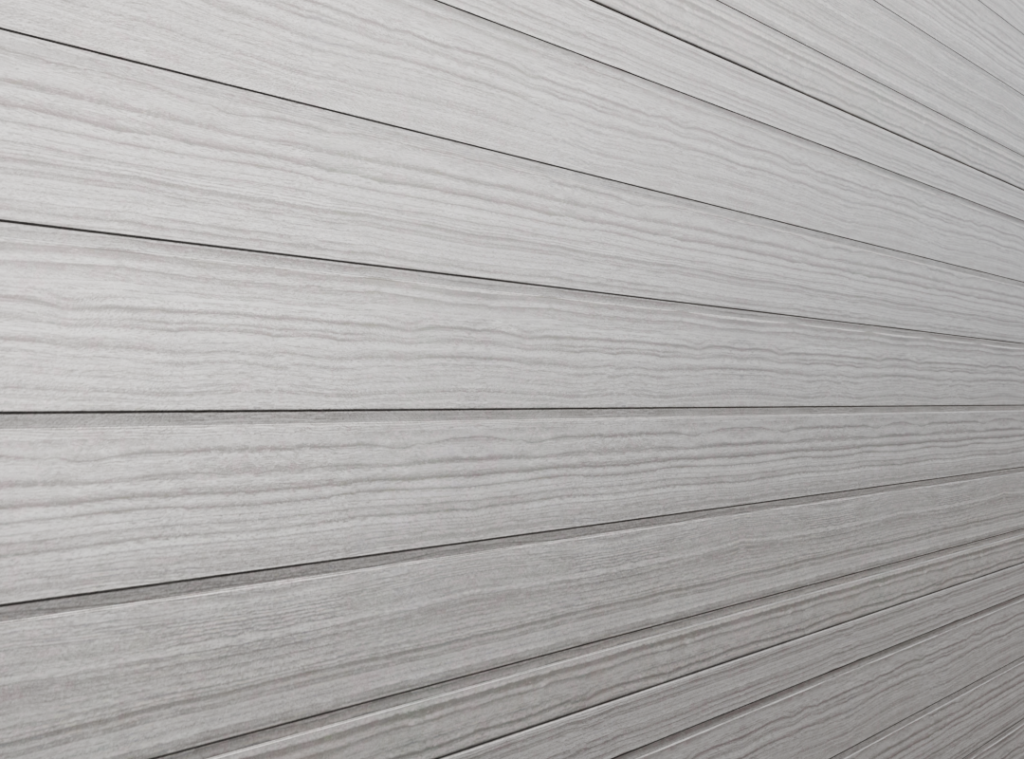

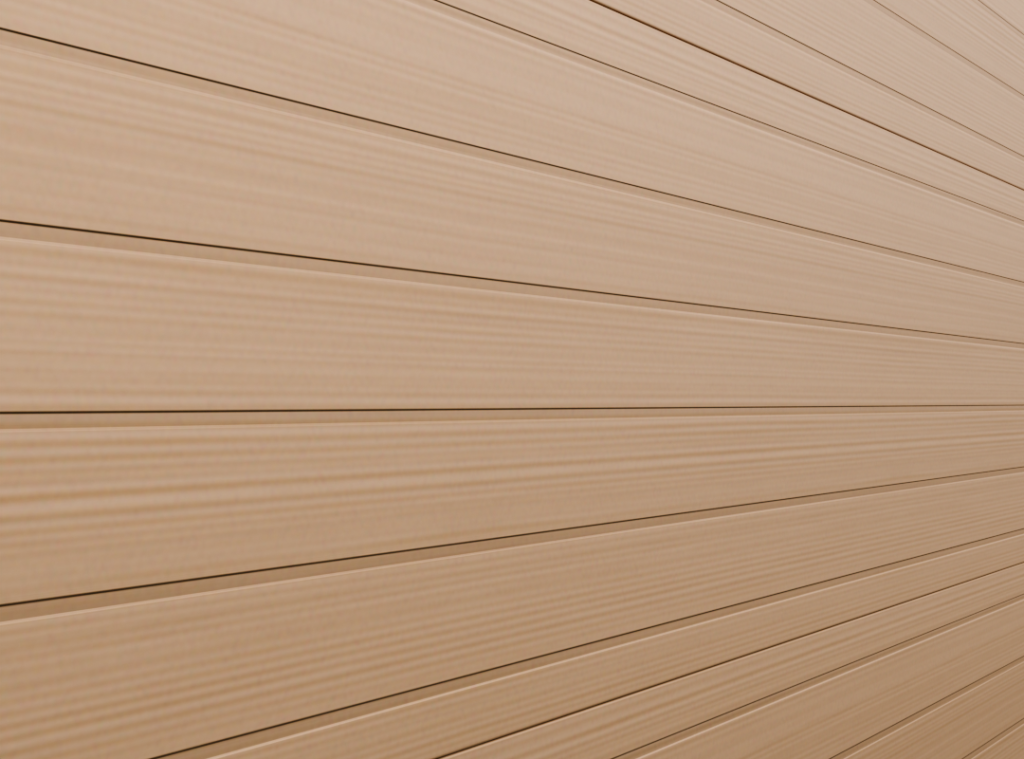

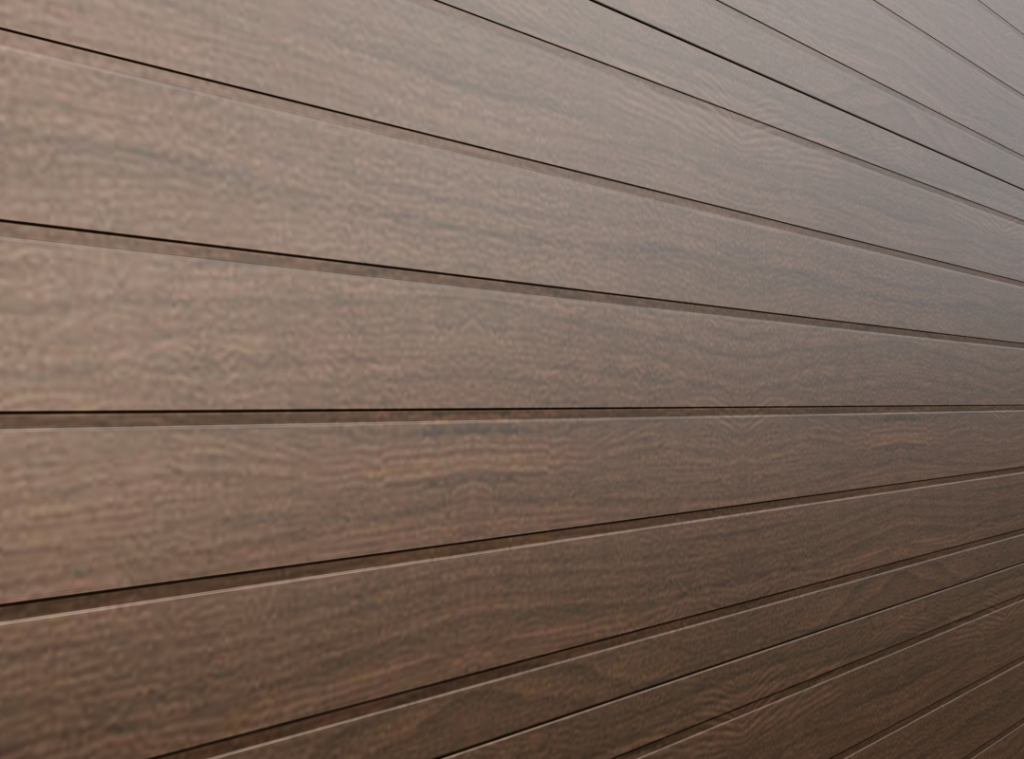

woodgrain finish in smooth & woodgrain embossment

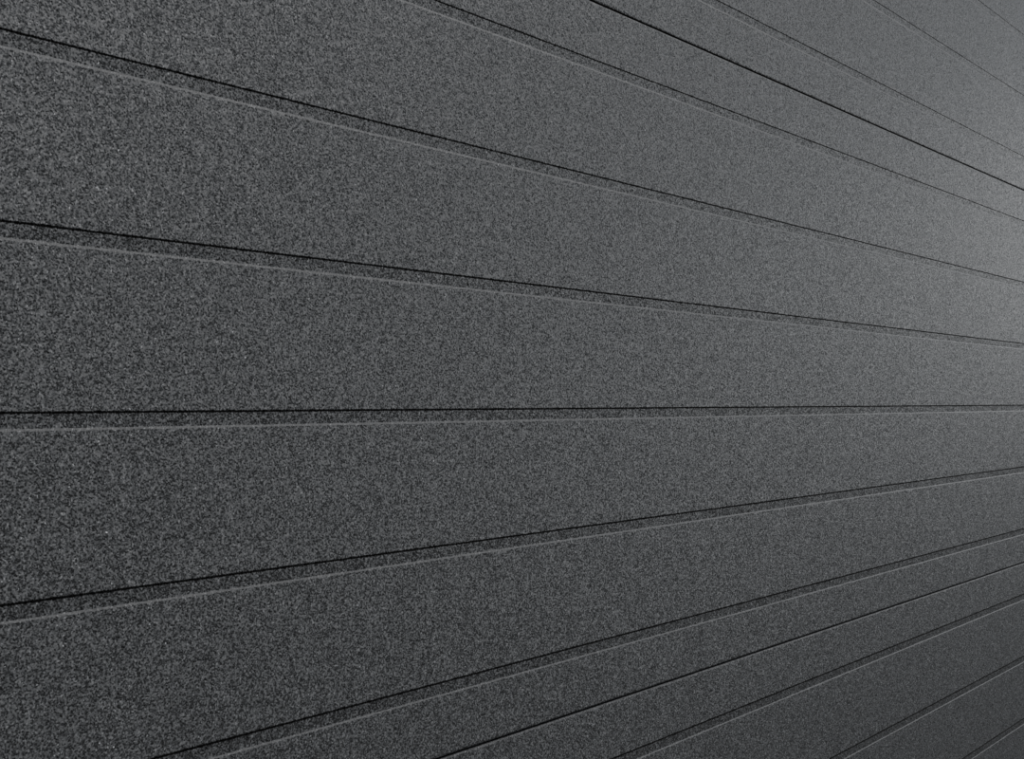

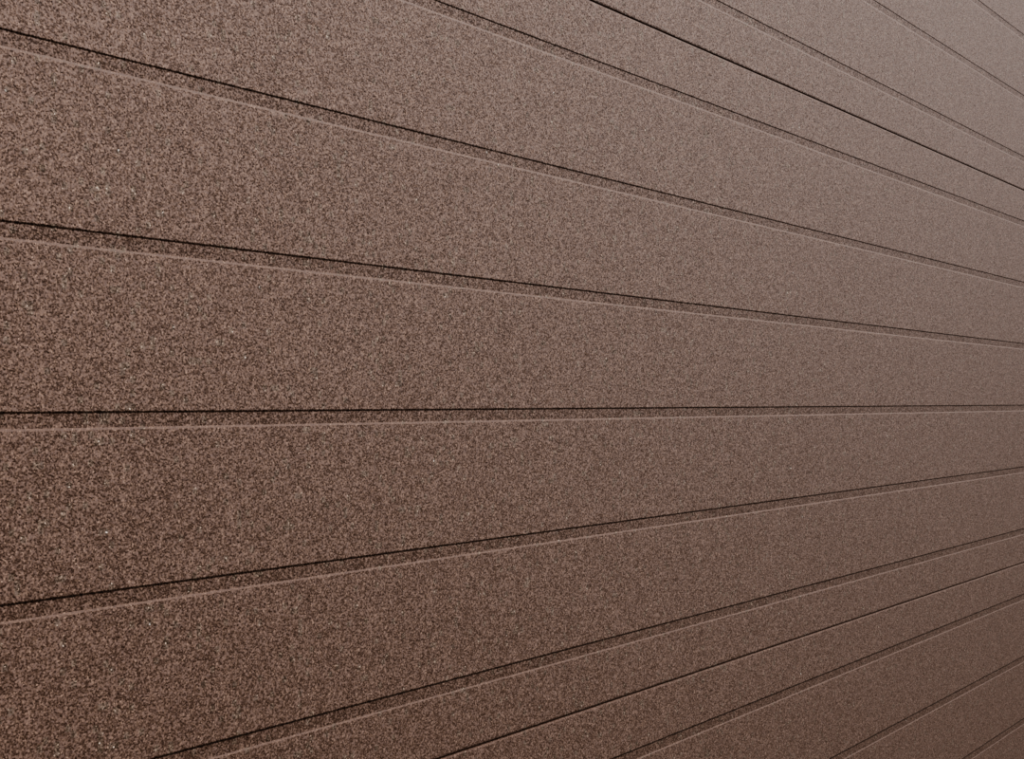

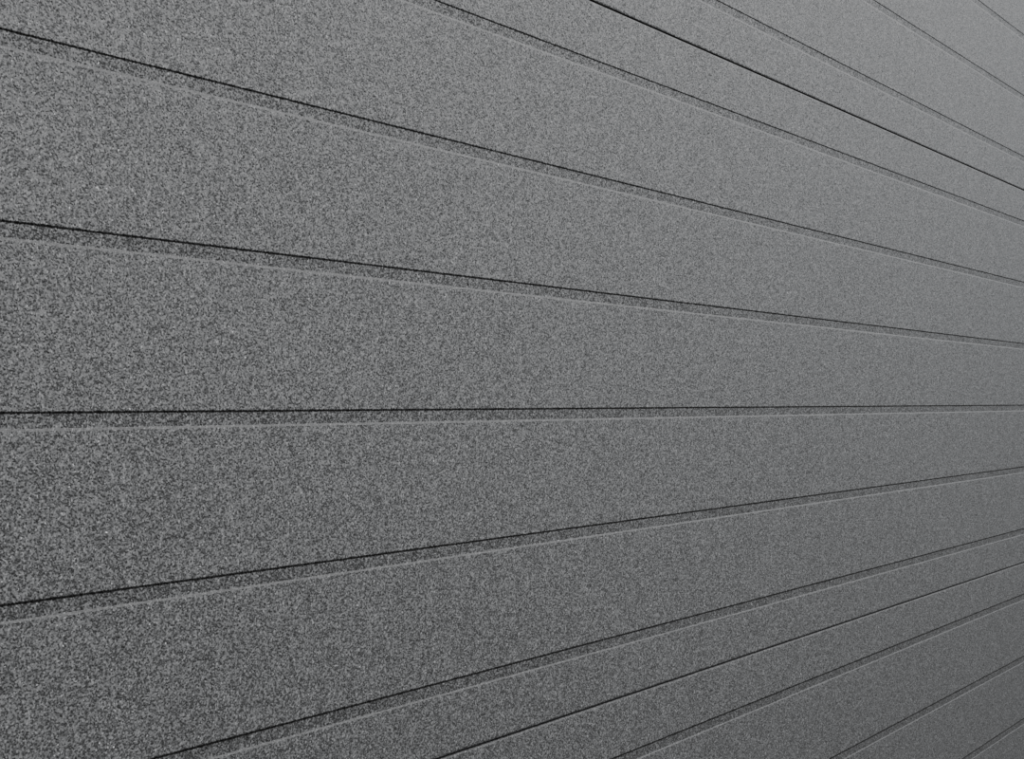

Reflective finish in smooth
CUSTOM in-house PAINT in woodgrain embossment
Your door may be custom painted to suit your home’s exterior colour specifications. Our experienced team will paint your garage door in-house in Edmonton, ensuring attention to detail and a high-quality finish.
Colour matching process
Step 1: Decide your model and colour.
Step 2: Your accurate information is key. We need your desired paint brand name, manufacturer and paint code. For more specific colours, bring a physical paint swatch card of your desired colour to a Steel-Craft dealer along with the information listed above. Please note that paint swatches and Pantone colours can change yearly, colours may appear different year to year.
Step 3: Once we receive your quote confirmation and colour sample information, we will match your desired colour in-house. For durability and cleaning purposes, we use a semi-gloss paint finish. We may decline matte paint requests. If we need additional information from you, our team will reach out.
For more details on custom paint options, contact Steel-Craft.
| Door Product | PR134R (Woodgrain Embossment) |
PR134S
(Smooth Embossment) |
| R-Value | 16 | 16 |
| Thickness | 1-3/4" | 1-3/4" |
| Available Widths | 8’ 9’ 10’ 12’ 14’ 16’ 18' | 8’ 9’ 10’ 12’ 14’ 16’ 18' |
| Standard Height | 6'-10' | 6'-10' |
- PR-134 DOOR SIZE CHART The PR-134 is 1-3/4” thick and comes in standard heights of 6’ through 10’. Door heights of 10’H & over require 2” commercial hardware. Headroom requirements may increase with Door Operators.
Height
- 6'
- 7'
- 7'3"
- 7'6"
- 7'9"
- 8'
- 8'9"
- 9'
- 9'3"
- 9'6"
- 9'9"
- 10'
8' wide
- 8'x6'
- 8'x7'
- 8'x7'3"
- 8'x7'6"
- 8'x7'9"
- 8'x8'
- 8'x8'9"
- 8'x9'
- 8'x9'3"
- 8'x9'6"
- 8'x9'9"
- 8'x10'
9' wide
- 9'x6'
- 9'x7'
- 9'x7'3"
- 9'x7'6"
- 9'x7'9"
- 9'x8'
- 9'x8'9"
- 9'x9'
- 9'x9'3"
- 9'x9'6"
- 9'x9'9"
- 9'x10'
10' wide
- 10'x6'
- 10'x7'
- 10'x7'3"
- 10'x7'6"
- 10'x7'9"
- 10'x8'
- 10'x8'9"
- 10'x9'
- 10'x9'3"
- 10'x9'6"
- 10'x9'9"
- 10'x10'
12' wide
- 12'x6'
- 12'x7'
- 12'x7'3"
- 12'x7'6"
- 12'x7'9"
- 12'x8'
- 12'x8'9"
- 12'x9'
- 12'x9'3"
- 12'x9'6"
- 12'x9'9"
- 12'x10'
16' wide
- 16'x6'
- 16'x7'
- 16'x7'3"
- 16'x7'6"
- 16'x7'9"
- 16'x8'
- 16'x8'9"
- 16'x9'
- 16'x9'3"
- 16'x9'6"
- 16'x9'9"
- 16'x10'
18' wide
- 18'x6'
- 18'x7'
- 18'x7'3"
- 18'x7'6"
- 18'x7'9"
- 18'x8'
- 18'x8'9"
- 18'x9'
- 18'x9'3"
- 18'x9'6"
- 18'x9'9"
- 18'x10'
NUMBER OF FL-138 SECTIONS
| DOOR HEIGHT | NUMBER OF 21" SECTIONS | NUMBER OF 24" SECTIONS | TOTAL SECTIONS |
|---|---|---|---|
| 6' | 3 | 3 | |
| 7' | 4 | 4 | |
| 7'3" | 3 | 1 | 4 |
| 7'6" | 2 | 2 | 4 |
| 7'9" | 1 | 3 | 4 |
| 8' | 4 | 4 | |
| 8'9" | 5 | 5 | |
| 9" | 4 | 1 | 5 |
| 9'3" | 3 | 2 | 5 |
| 9'6" | 2 | 3 | 5 |
| 9'9" | 1 | 4 | 5 |
| 10' | 5 | 5 |
Height
- 6'
- 7'
- 7'3"
- 7'6"
- 7'9"
- 8'
- 8'9"
- 9'
- 9'3"
- 9'6"
- 9'9"
- 10'
8' wide
- 8'x6'
- 8'x7'
- 8'x7'3"
- 8'x7'6"
- 8'x7'9"
- 8'x8'
- 8'x8'9"
- 8'x9'
- 8'x9'3"
- 8'x9'6"
- 8'x9'9"
- 8'x10'
9' wide
- 9'x6'
- 9'x7'
- 9'x7'3"
- 9'x7'6"
- 9'x7'9"
- 9'x8'
- 9'x8'9"
- 9'x9'
- 9'x9'3"
- 9'x9'6"
- 9'x9'9"
- 9'x10'
10' wide
- 10'x6'
- 10'x7'
- 10'x7'3"
- 10'x7'6"
- 10'x7'9"
- 10'x8'
- 10'x8'9"
- 10'x9'
- 10'x9'3"
- 10'x9'6"
- 10'x9'9"
- 10'x10'
12' wide
- 12'x6'
- 12'x7'
- 12'x7'3"
- 12'x7'6"
- 12'x7'9"
- 12'x8'
- 12'x8'9"
- 12'x9'
- 12'x9'3"
- 12'x9'6"
- 12'x9'9"
- 12'x10'
14' wide
- 14'x6'
- 14'x7'
- 14'x7'3"
- 14'x7'6"
- 14'x7'9"
- 14'x8'
- 14'x8'9"
- 14'x9'
- 14'x9'3"
- 14'x9'6"
- 14'x9'9"
- 14'x10'
16' wide
- 16'x6'
- 16'x7'
- 16'x7'3"
- 16'x7'6"
- 16'x7'9"
- 16'x8'
- 16'x8'9"
- 16'x9'
- 16'x9'3"
- 16'x9'6"
- 16'x9'9"
- 16'x10'
18' wide
- 18'x6'
- 18'x7'
- 18'x7'3"
- 18'x7'6"
- 18'x7'9"
- 18'x8'
- 18'x8'9"
- 18'x9'
- 18'x9'3"
- 18'x9'6"
- 18'x9'9"
- 18'x10'
NUMBER OF PR-134 SECTIONS
| DOOR HEIGHT |
NUMBER OF 21" SECTIONS |
NUMBER OF 24" SECTIONS |
TOTAL SECTIONS |
|---|---|---|---|
| 6' | 3 | 3 | |
| 7' | 4 | 4 | |
| 7'3" | 3 | 1 | 4 |
| 7'6" | 2 | 2 | 4 |
| 7'9" | 1 | 3 | 4 |
| 8' | 4 | 4 | |
| 8'9" | 5 | 5 | |
| 9' | 4 | 1 | 5 |
| 9'3" | 3 | 2 | 5 |
| 9'6" | 2 | 3 | 5 |
| 9'9" | 1 | 4 | 5 |
| 10' | 5 | 5 |
NUMBER OF PR-134 SECTIONS FOR ELITE COLOURS (Cedar, Walnut & Weathered Wood)
| DOOR HEIGHT |
NUMBER OF 21" SECTIONS |
NUMBER OF 21.6" SECTIONS |
NUMBER OF 24" SECTIONS |
TOTAL SECTIONS |
|---|---|---|---|---|
| 6' | 3 | 3 | ||
| 7' | 4 | 4 | ||
| 7'3" | 3 | 1 | 4 | |
| 7'6" | 2 | 2 | 4 | |
| 7'9" | 1 | 3 | 4 | |
| 8' | 4 | 4 | ||
| 8'9" | 5 | 5 | ||
| 9' | 5 | 5 | ||
| 9'3" | 3 | 2 | 5 | |
| 9'6" | 2 | 3 | 5 | |
| 9'9" | 1 | 4 | 5 | |
| 10' | 5 | 5 |

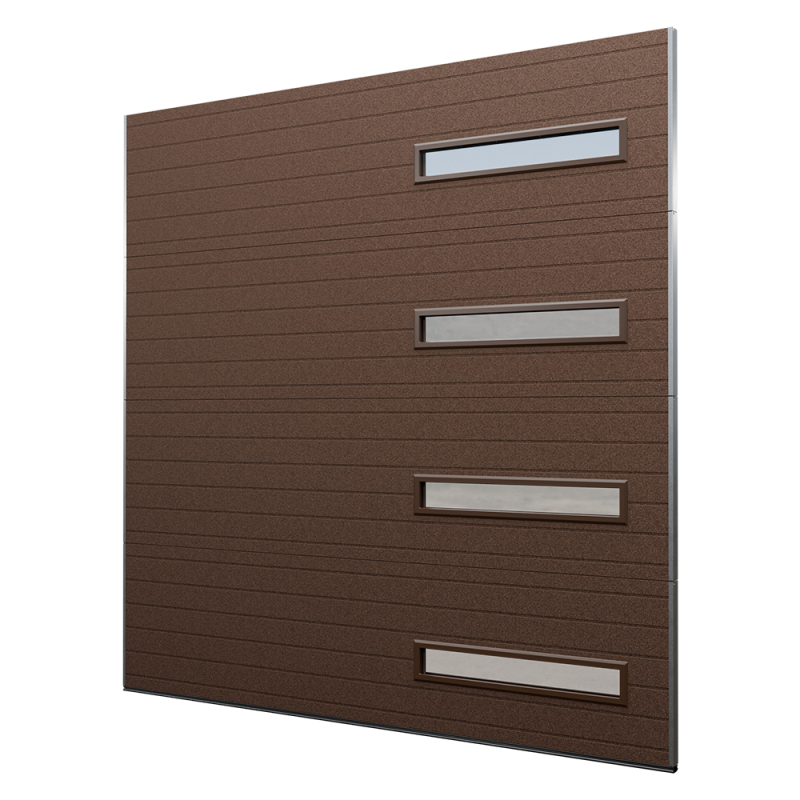

Window sizes available in 24″x 6″, 32″x 6″, 26″x 14″ and 38″ x 14″.
PLAIN LITE
Available in 5/8” ThermoPane.
Window size available in 26”x14” and 38″x14″
Available in 5/8” ThermoPane.
