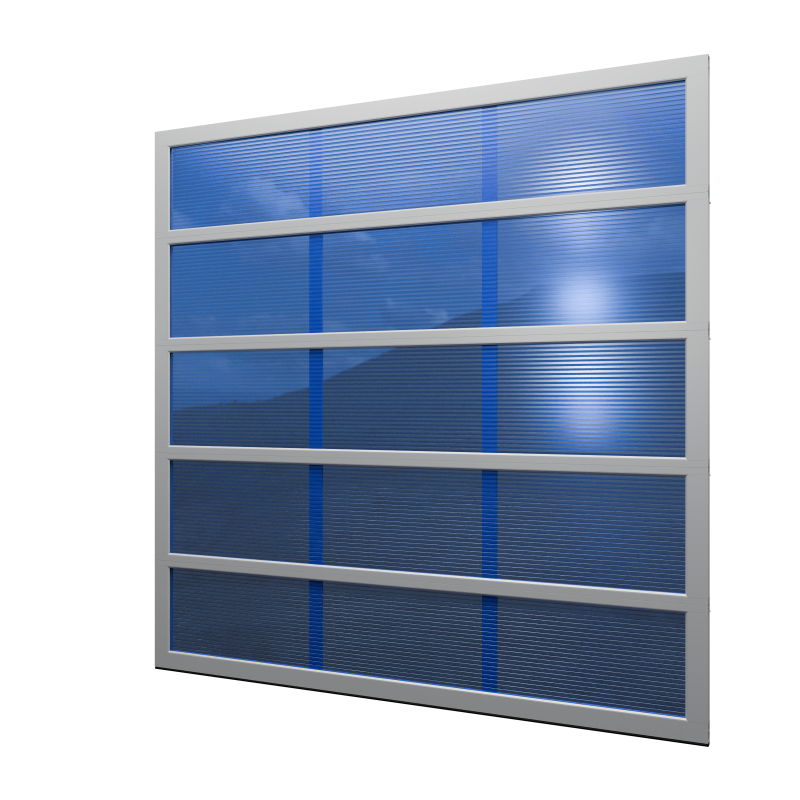

ALUMINUM SA6500

The Aluminum SA6500 commercial garage door features leading edge design elements combined with extremely lightweight construction. Steel-Craft utilizes full view sections with Thermoclear to deliver a clean look, maximum visibility and high light transmission.

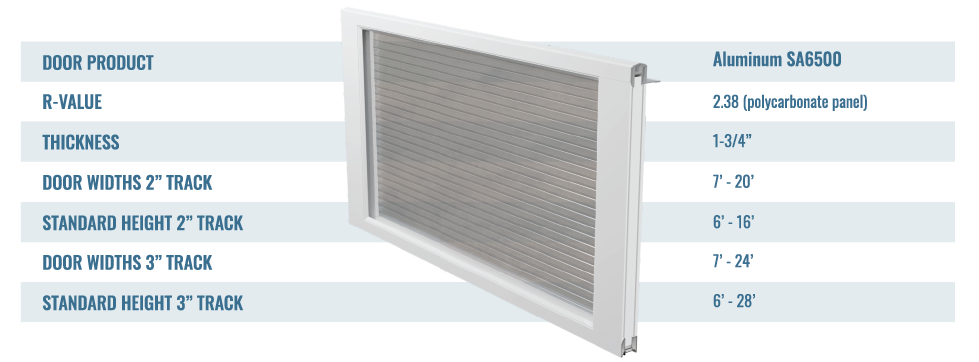

ALUMINUM SA6500 DOOR SIZE CHART

Height

  • 6′
  • 7′
  • 8′
  • 9′
  • 10′
  • 11′
  • 12′
  • 14′
  • 16′

7′ wide

  • 7’x6′
  • 7’x7′
  • 7’x8′
  • 7’x9′
  • 7’x10′
  • 7’x11′
  • 7’x12′
  • 7’x14′
  • 7’x16′

8′ wide

  • 8’x6′
  • 8’x7′
  • 8’x8′
  • 8’x9′
  • 8’x10′
  • 8’x11′
  • 8’x12′
  • 8’x14′
  • 8’x16′

9′ wide

  • 9’x6′
  • 9’x7′
  • 9’x8′
  • 9’x9′
  • 9’x10′
  • 9’x11′
  • 9’x12′
  • 9’x14′
  • 9’x16′

10′ wide

  • 10’x6′
  • 10’x7′
  • 10’x8′
  • 10’x9′
  • 10’x10′
  • 10’x11′
  • 10’x12′
  • 10’x14′
  • 10’x16′

12′ wide

  • 12’x6′
  • 12’x7′
  • 12’x8′
  • 12’x9′
  • 12’x10′
  • 12’x11′
  • 12’x12′
  • 12’x14′
  • 12’x16′

14′ wide

  • 14’x6′
  • 14’x7′
  • 14’x8′
  • 14’x9′
  • 14’x10′
  • 14’x11′
  • 14’x12′
  • 14’x14′
  • 14’x16′

16′ wide

  • 16’x6′
  • 16’x7′
  • 16’x8′
  • 16’x9′
  • 16’x10′
  • 16’x11′
  • 16’x12′
  • 16’x14′
  • 16’x16′

18′ wide

  • 18’x6′
  • 18’x7′
  • 18’x8′
  • 18’x9′
  • 18’x10′
  • 18’x11′
  • 18’x12′
  • 18’x14′
  • 18’x16′

20′ wide

  • 20’x6′
  • 20’x7′
  • 20’x8′
  • 20’x9′
  • 20’x10′
  • 20’x11′
  • 20’x12′
  • 20’x14′
  • 20’x16′
.
Note: The weight of the door will determine the default track size. Door weight may vary once window kits and/or hardware are added. Any door weighing more than 749 lbs requires 3” track.
NUMBER OF SECTIONS
HEIGHT OF DOOR NUMBER OF 21″ SECTIONS NUMBER OF 24″ SECTIONS TOTAL SECTIONS
6′ 3 3
7′ 4 4
8′ 4 4
9′ 4 4
10′ 5 5
11′ 4 2 6
12′ 6 6
14′ 7 7
16′ 8 8
.

Height

  • 6′
  • 7′
  • 8′
  • 9′
  • 10′
  • 11′
  • 12′
  • 14′
  • 16′
  • 18′
  • 20′
  • 22′
  • 24′
  • 26′
  • 28′

7′ wide

  • 7’x6′
  • 7’x7′
  • 7’x8′
  • 7’x9′
  • 7’x10′
  • 7’x11′
  • 7’x12′
  • 7’x14′
  • 7’x16′
  • 7’x18′
  • 7’x20′
  • 7’x22′
  • 7’x24′
  • 7’x26′
  • 7’x28′

8′ wide

  • 8’x6′
  • 8’x7′
  • 8’x8′
  • 8’x9′
  • 8’x10′
  • 8’x11′
  • 8’x12′
  • 8’x14′
  • 8’x16′
  • 8’x18′
  • 8’x20′
  • 8’x22′
  • 8’x24′
  • 8’x26′
  • 8’x28′

9′ wide

  • 9’x6′
  • 9’x7′
  • 9’x8′
  • 9’x9′
  • 9’x10′
  • 9’x11′
  • 9’x12′
  • 9’x14′
  • 9’x16′
  • 9’x18′
  • 9’x20′
  • 9’x22′
  • 9’x24′
  • 9’x26′
  • 9’x28′

10′ wide

  • 10’x6′
  • 10’x7′
  • 10’x8′
  • 10’x9′
  • 10’x10′
  • 10’x11′
  • 10’x12′
  • 10’x14′
  • 10’x16′
  • 10’x18′
  • 10’x20′
  • 10’x22′
  • 10’x24′
  • 10’x26′
  • 10’x28′

12′ wide

  • 12’x6′
  • 12’x7′
  • 12’x8′
  • 12’x9′
  • 12’x10′
  • 12’x11′
  • 12’x12′
  • 12’x14′
  • 12’x16′
  • 12’x18′
  • 12’x20′
  • 12’x22′
  • 12’x24′
  • 12’x26′
  • 12’x28′

14′ wide

  • 14’x6′
  • 14’x7′
  • 14’x8′
  • 14’x9′
  • 14’x10′
  • 14’x11′
  • 14’x12′
  • 14’x14′
  • 14’x16′
  • 14’x18′
  • 14’x20′
  • 14’x22′
  • 14’x24′
  • 14’x26′
  • 14’x28′

16′ wide

  • 16’x6′
  • 16’x7′
  • 16’x8′
  • 16’x9′
  • 16’x10′
  • 16’x11′
  • 16’x12′
  • 16’x14′
  • 16’x16′
  • 16’x18′
  • 16’x20′
  • 16’x22′
  • 16’x24′
  • 16’x26′
  • 16’x28′

18′ wide

  • 18’x6′
  • 18’x7′
  • 18’x8′
  • 18’x9′
  • 18’x10′
  • 18’x11′
  • 18’x12′
  • 18’x14′
  • 18’x16′
  • 18’x18′
  • 18’x20′
  • 18’x22′
  • 18’x24′
  • 18’x26′
  • 18’x28′

20′ wide

  • 20’x6′
  • 20’x7′
  • 20’x8′
  • 20’x9′
  • 20’x10′
  • 20’x11′
  • 20’x12′
  • 20’x14′
  • 20’x16′
  • 20’x18′
  • 20’x20′
  • 20’x22′
  • 20’x24′
  • 20’x26′
  • 20’x28′

22′ wide

  • 22’x6′
  • 22’x7′
  • 22’x8′
  • 22’x9′
  • 22’x10′
  • 22’x11′
  • 22’x12′
  • 22’x14′
  • 22’x16′
  • 22’x18′
  • 22’x20′
  • 22’x22′
  • 22’x24′
  • 22’x26′
  • 22’x28′

24′ wide

  • 24’x6′
  • 24’x7′
  • 24’x8′
  • 24’x9′
  • 24’x10′
  • 24’x11′
  • 24’x12′
  • 24’x14′
  • 24’x16′
  • 24’x18′
  • 24’x20′
  • 24’x22′
  • 24’x24′
  • 24’x26′
  • 24’x28′
.
NUMBER OF SECTIONS
HEIGHT OF DOOR NUMBER OF 21″ SECTIONS NUMBER OF 24″ SECTIONS TOTAL SECTIONS
6′ 3 3
7′ 4 4
8′ 4 4
9′ 4 4
10′ 5 5
11′ 4 2 6
12′ 6 6
14′ 7 7
16′ 8 8
18′ 9 9
20′ 10 10
22′ 11 11
24′ 12 12
26′ 13 13
28′ 14 14
.

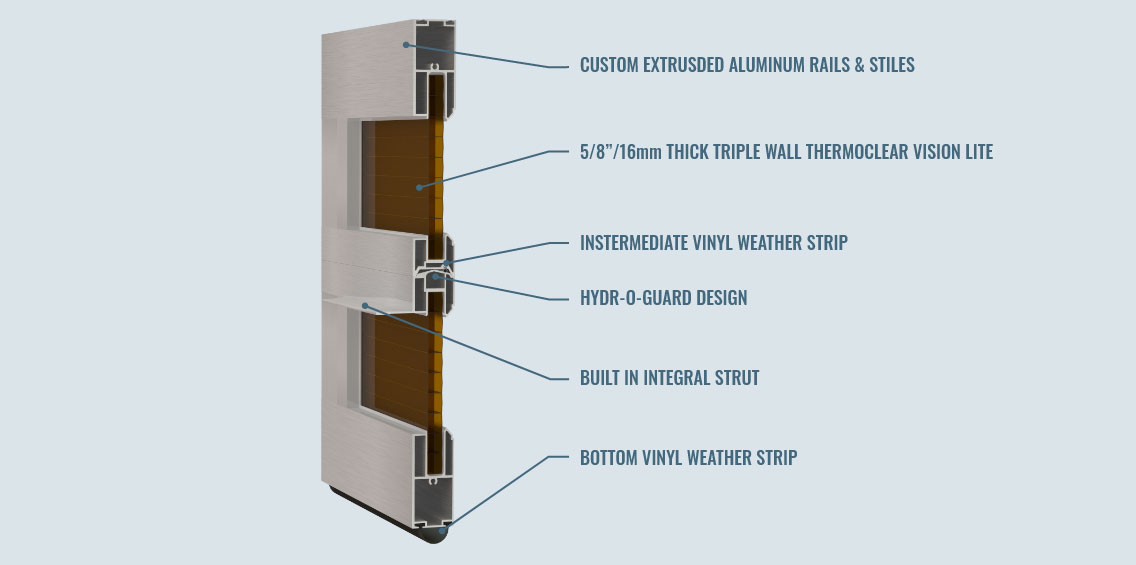

SA6500 FEATURES
*NEW DESIGN*
HYDR-O-GUARD

Re-designed to keep the weather out.
Note: SA6500 Aluminum rails will be used going forward on all Aluminum door styles.

FRAMES
  • Thickness: 1.8mm (0.071”) to 2.5mm (0.100”); 3.2mm (1/8”) or more at fastener locations.
  • Intermediate Stiles: located on interior face only. 1.6mm (0.063”) minimum and 4.8mm (0.189”) at fastener locations. Stile width 76mm (3.0”).
  • Top Rail: aluminum strut 38mm (1-1/2”) deep.
INSULATED ALUMINUM PANEL

1.27 mm thick aluminum sheet material insulated and sealed to door frame.

DOOR FACE HARDWARE
  • Graduated end hinges and centre hinges made from galvanized steel.
  • Heavy duty rollers with heat-treated and outer races with 10 floating ball bearings.
TRACKS

50 mm or 75 mm wide galvanized steel tracks.

WEATHERSTRIPPING
  • Bottom weatherstripping: U-type arctic grade vinyl.
  • Jamb: quality factory finished metal with two-point flexible arctic grade vinyl weatherstrip.
  • Header: quality factory finished metal with two-point flexible arctic grade vinyl weatherstrip.
  • Section Interface: arctic grade vinyl bubble shaped weatherstrip at all section meeting rails in integral retainer.
COUNTERBALNCE SYSTEM
  • Class II oil tempered ASTM A229 wire, minimum 10,000 cycle torsion springs on continuous steel shaft.
  • Aircraft quality galvanized lift cables with a minimum safety factor of 5 to 1.
LOCKING

Interior mounted slide bolt suitable for pad locking.

OPERATION

Manual, Optional Hand chain hoist (3-1 ratio) or optional electric operator.

ABOUT OUR COLOURS

Every door is finished with a factory applied, baked on, two coat polyester paint finish giving years of maintenance free operation.

Doors may be painted to suit the exterior colour specifications. A full selection of additional custom anodizing colours are available upon special order. Please contact a Steel-Craft dealer for details and colour samples.

Note: The accuracy of the colours displayed may vary depending on the settings of your monitor. To obtain an exact colour reference, please contact a Steel-Craft dealer for colour samples.

ANODIZED
Clear
ACRYNAR FINISH
White
FULL VIEW THERMOCLEAR POLYCARBONATE

All colours only available in Triple wall 16mm.

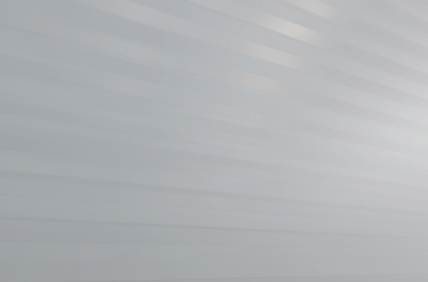

Clear Lexan

Triple Wall 16mm

White Opal Lexan

Triple Wall 16mm

Bronze Lexan

Triple Wall 16mm

Charcoal Lexan

Triple Wall 16mm

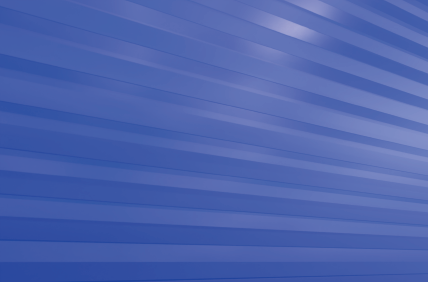

Blue Lexan

Triple Wall 16mm

Green Lexan
Triple Wall 16mm
Red Lexan
Triple Wall 16mm

Note: The glazing material (Thermoclear®) used is ideal for humid environments, however it differs from glass in that it’s not sealed, therefore condensation may form in the cellular walls when interior/exterior temperatures are such that dew point temperatures are created (usually in periods of cooler weather). This condensation usually disappears when warmer weather returns.
