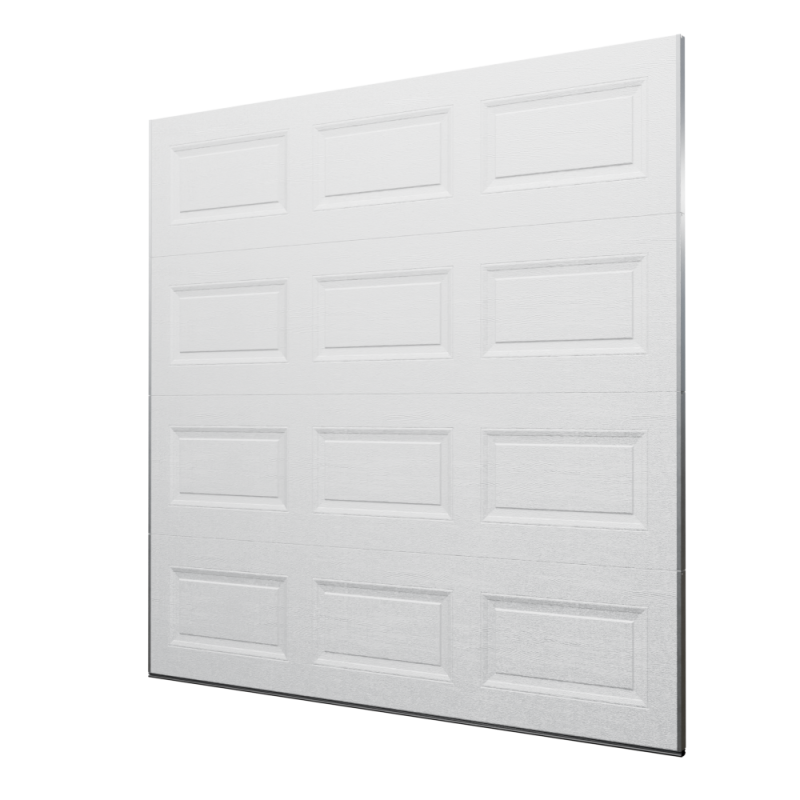

THERMO-CRAFT

The Thermo-Craft garage door series, crafted in our classic design, delivers dependable construction and excellent thermal efficiency.

ABOUT OUR COLOURS

factory finish colour

Every door is finished with a factory applied, baked on, two coat polyester paint finish giving years of maintenance free operation.

AVAILABLE IN T-12

AVAILABLE IN T-16

CUSTOM in-house PAINT

Your door may be custom painted to suit your home’s exterior colour specifications. Our experienced team will paint your garage door in-house in Edmonton, ensuring attention to detail and a high-quality finish.

Colour matching process

Step 1: Decide your model and colour.

Step 2: Your accurate information is key. We need your desired paint brand name, manufacturer and paint code. For more specific colours, bring a physical paint swatch card of your desired colour to a Steel-Craft dealer along with the information listed above. Please note that paint swatches and Pantone colours can change yearly, colours may appear different year to year.

Step 3: Once we receive your quote confirmation and colour sample information, we will match your desired colour in-house. For durability and cleaning purposes, we use a semi-gloss paint finish. We may decline matte paint requests. If we need additional information from you, our team will reach out.

For more details on custom paint options, contact Steel-Craft.

Note: The accuracy of the colours displayed may vary depending on the settings of your monitor. To obtain an exact colour reference of factory colours, please contact a Steel-Craft dealer for colour samples.

T-12 DOOR SIZE CHART The T-12 is 1-1/8” thick and comes in standard heights of 7’ and 8’, with the standard headroom requirement of 12”, however low headroom kits are available for special applications.
T-16 DOOR SIZE CHART The T-16 is 1-3/4" thick and comes in standard heights of 6' through 10'. Door heights of 10'H & over require 2" commercial hardware. Headroom requirements may increase with Door Operators.

Height

7'
8'

8' wide

8'x7'
8'x8'

9' wide

9'x7'
9'x8'

10' wide

10'x7'
10'x8'

16' wide

16'x7'
16'x8'

T-12 NUMBER OF SECTIONS

DOOR HEIGHT	NUMBER OF 21" SECTIONS	NUMBER OF 24" SECTIONS	TOTAL SECTIONS
7'	4		4
8'		4	4

Height

6'
6'5"
6'7"
6'8"
6'10"
7'
7'3"
7'6"
7'9"
8'
8'2"
8'4"
8'5"
8'7"
8'9"
9'
9'3"
9'6"
9'7"
9'9"
9'11"
10'

8' wide

8'x6'
8'x6'5"
8'x6'7"
8'x6'8"
8'x6'10"
8'x7'
8'x7'3"
8'x7'6"
8'x7'9"
8'x8'
8'x8'2"
8'x8'4"
8'x8'5"
8'x8'7"
8'x8'9"
8'x9'
8'x9'3"
8'x9'6"
8'x9'7"
8'x9'9"
8'x9'11"
8'x10'

9' wide

9'x6'
9'x6'5"
9'x6'7"
9'x6'8"
9'x6'10"
9'x7'
9'x7'3"
9'x7'6"
9'x7'9"
9'x8'
9'x8'2"
9'x8'4"
9'x8'5"
9'x8'7"
9'x8'9"
9'x9'
9'x9'3"
9'x9'6"
9'x9'7"
9'x9'9"
9'x9'11"
9'x10'

10' wide

10'x6'
10'x6'5"
10'x6'7"
10'x6'8"
10'x6'10"
10'x7'
10'x7'3"
10'x7'6"
10'x7'9"
10'x8'
10'x8'2"
10'x8'4"
10'x8'5"
10'x8'7"
10'x8'9"
10'x9'
10'x9'3"
10'x9'6"
10'x9'7"
10'x9'9"
10'x9'11"
10'x10'

12' wide

12'x6'
12'x6'5"
12'x6'7"
12'x6'8"
12'x6'10"
12'x7'
12'x7'3"
12'x7'6"
12'x7'9"
12'x8'
12'x8'2"
12'x8'4"
12'x8'5"
12'x8'7"
12'x8'9"
12'x9'
12'x9'3"
12'x9'6"
12'x9'7"
12'x9'9"
12'x9'11"
12'x10'

14' wide

14'x6'
14'x6'5"
14'x6'7"
14'x6'8"
14'x6'10"
14'x7'
14'x7'3"
14'x7'6"
14'x7'9"
14'x8'
14'x8'2"
14'x8'4"
14'x8'5"
14'x8'7"
14'x8'9"
14'x9'
14'x9'3"
14'x9'6"
14'x9'7"
14'x9'9"
14'x9'11"
14'x10'

16' wide

16'x6'
16'x6'5"
16'x6'7"
16'x6'8"
16'x6'10"
16'x7'
16'x7'3"
16'x7'6"
16'x7'9"
16'x8'
16'x8'2"
16'x8'4"
16'x8'5"
16'x8'7"
16'x8'9"
16'x9'
16'x9'3"
16'x9'6"
16'x9'7"
16'x9'9"
16'x9'11"
16'x10'

18' wide

18'x6'
18'x6'5"
18'x6'7"
18'x6'8"
18'x6'10"
18'x7'
18'x7'3"
18'x7'6"
18'x7'9"
18'x8'
18'x8'2"
18'x8'4"
18'x8'5"
18'x8'7"
18'x8'9"
18'x9'
18'x9'3"
18'x9'6"
18'x9'7"
18'x9'9"
18'x9'11"
18'x10'

T-16 NUMBER OF SECTIONS

DOOR HEIGHT	NUMBER OF 19.2" SECTIONS	NUMBER OF 21" SECTIONS	NUMBER OF 24" SECTIONS	TOTAL SECTIONS
6'			3	3
6'5"	4			4
6'7"	3	1		4
6'8"	2	2		4
6'10"	1	3		4
7'		4		4
7'3"		3	1	4
7'6"		2	2	4
7'9"		1	3	4
8'			4	4
8'2"	4	1		5
8'4"	3	2		5
8'5"	2	3		5
8'7"	1	4		5
8'9"		5		5
9"		4	1	5
9'3"		3	2	5
9'6"		2	3	5
9'7"	6			6
9'9"		1	4	5
9'11"	4	2		6
10'			5	5

T-16 NUMBER OF SECTIONS FOR ELITE COLOURS (Weathered Wood & Walnut)

DOOR HEIGHT	NUMBER OF 19.2" SECTIONS	NUMBER OF 21" SECTIONS	NUMBER OF 21.6" SECTIONS	NUMBER OF 24" SECTIONS	TOTAL SECTIONS
6'				3	3
6'5"	4				4
6'7"	3	1			4
6'8"	2	2			4
6'10"	1	3			4
7'		4			4
7'3"		3		1	4
7'6"		2		2	4
7'9"		1		3	4
8'				4	4
8'2"	4	1			5
8'4"	3	2			5
8'5"	2	3			5
8'7"	1	4			5
8'9"		5			5
9"			5		5
9'3"		3		2	5
9'6"		2		3	5
9'7"	6				6
9'9"		1		4	5
9'11"	4	2			6
10'				5	5

GLASS

PLAIN LITE
Available in 5/8” ThermoPane.

Please Note: Glazing and window options are only available in the T-16 product line.

SNAP-IN DECORATIVE DESIGN

Window size available in 26”x14”
Available in 5/8” ThermoPane.

AVAILABLE SNAP-IN COLOURS

SNAP-IN DESIGN

INLAID MUNTIN BARS

Window size available in 26”x14”
Available in 5/8” ThermoPane.

MUNTIN BAR COLOURS

MUNTIN BAR DESIGN

AVAILABLE FRAME COLOURS
