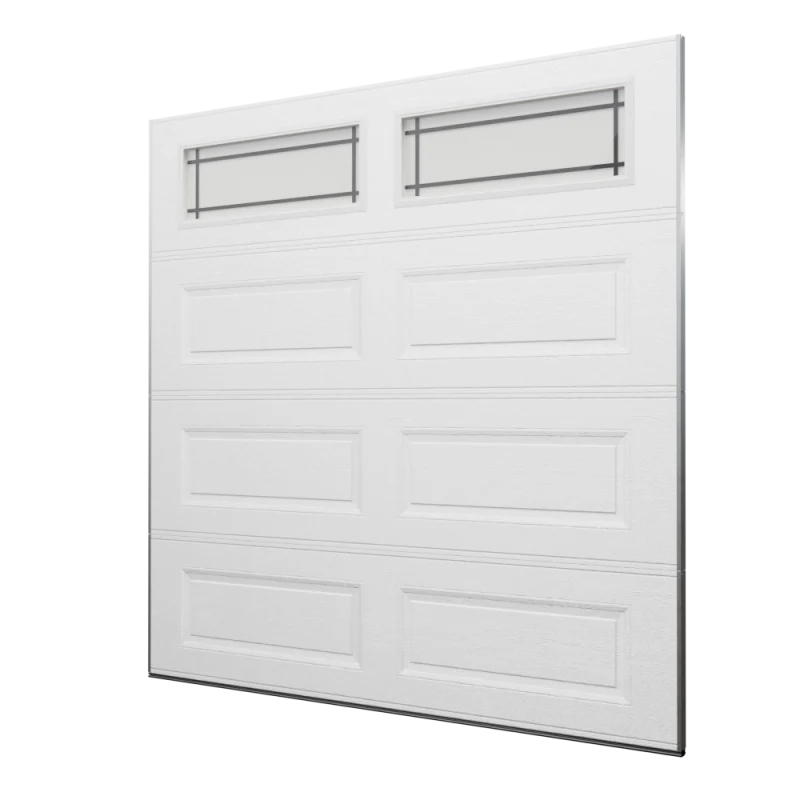

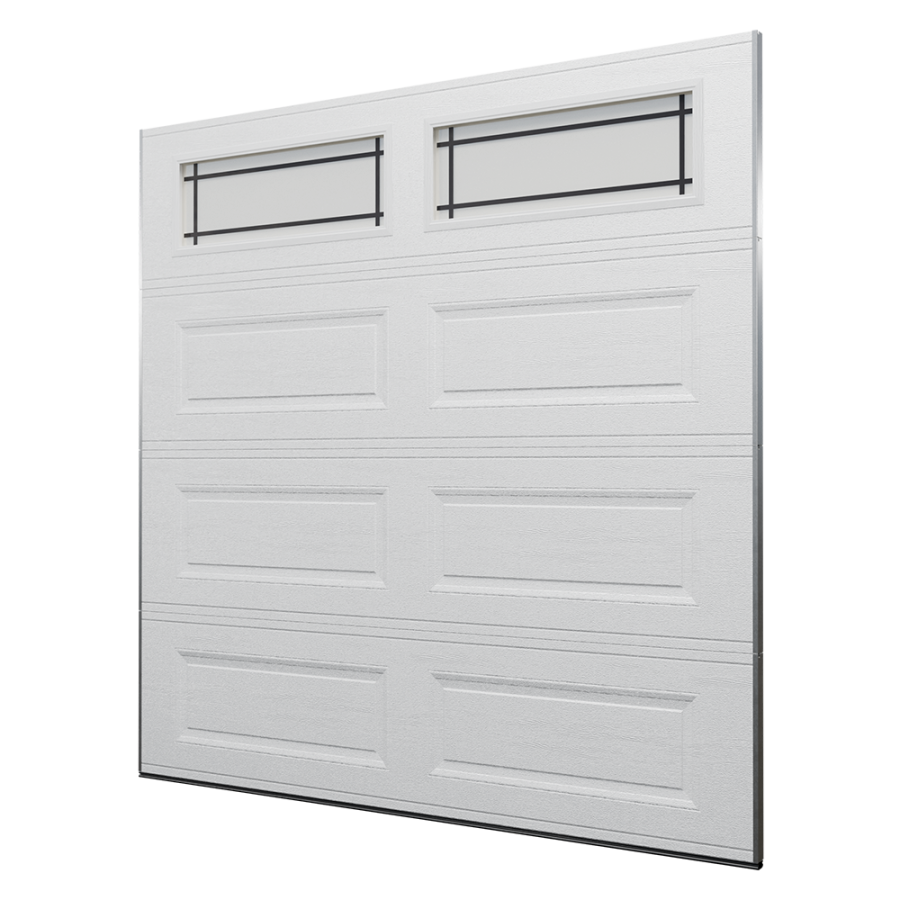

RANCH-CRAFT RIDGELINE

The Ranch-Craft RidgeLine garage door series, notable for its long panel design, delivers exceptional construction, and thermal efficiency.

ABOUT OUR COLOURS

Every door is finished with a factory applied, baked on, two coat polyester paint finish giving years of maintenance free operation.

The door may also be painted to suit the exterior colour specifications of your home.

Click here for Painting Instructions

Note: The accuracy of the colours displayed may vary depending on the settings of your monitor. To obtain an exact colour reference, please contact a Steel-Craft dealer for colour samples.

AVAILABLE IN RC-10

AVAILABLE IN RC-16

RC-16 ELITE FINISHES

Please Note: Elite Finish in Charcoal is only available in standard heights of 7′, 8′, 9′ & 10′.

RC-10 DOOR SIZE CHART The RC-10 is 1-1/8” thick and comes in standard heights of 7’ and 8’, with the the standard headroom requirement of 12”, however low headroom kits are available for special applications.
RC-16 DOOR SIZE CHART The RC-16 is 1-3/4” thick and comes in standard heights of 6’ through 10’. Door heights of 10’H & over require 2” commercial hardware. Headroom requirements may increase with Door Operators.

Height

7'
8'

8' wide

8'x7'
8'x8'

9' wide

9'x7'
9'x8'

10' wide

10'x7'
10'x8'

16' wide

16'x7'
16'x8'

RC-10 NUMBER OF SECTIONS

DOOR HEIGHT	NUMBER OF 21" SECTIONS	NUMBER OF 24" SECTIONS	TOTAL SECTIONS
7'	4		4
8'		4	4

Height

6'
7' *
7'3"
7'6"
7'9"
8' *
8'9"
9' *
9'3"
9'6"
9'9"
10' *

8' wide

8'x6'
8'x7'
8'x7'3"
8'x7'6"
8'x7'9"
8'x8'
8'x8'9"
8'x9'
8'x9'3"
8'x9'6"
8'x9'9"
8'x10'

9' wide

9'x6'
9'x7'
9'x7'3"
9'x7'6"
9'x7'9"
9'x8'
9'x8'9"
9'x9'
9'x9'3"
9'x9'6"
9'x9'9"
9'x10'

10' wide

10'x6'
10'x7'
10'x7'3"
10'x7'6"
10'x7'9"
10'x8'
10'x8'9"
10'x9'
10'x9'3"
10'x9'6"
10'x9'9"
10'x10'

12' wide

12'x6'
12'x7'
12'x7'3"
12'x7'6"
12'x7'9"
12'x8'
12'x8'9"
12'x9'
12'x9'3"
12'x9'6"
12'x9'9"
12'x10'

14' wide

14'x6'
14'x7'
14'x7'3"
14'x7'6"
14'x7'9"
14'x8'
14'x8'9"
14'x9'
14'x9'3"
14'x9'6"
14'x9'9"
14'x10'

16' wide

16'x6'
16'x7'
16'x7'3"
16'x7'6"
16'x7'9"
16'x8'
16'x8'9"
16'x9'
16'x9'3"
16'x9'6"
16'x9'9"
16'x10'

18' wide

18'x6'
18'x7'
18'x7'3"
18'x7'6"
18'x7'9"
18'x8'
18'x8'9"
18'x9'
18'x9'3"
18'x9'6"
18'x9'9"
18'x10'

* Elite Finish in Charcoal is only available in standard heights of 7', 8', 9' and 10'.

RC-16 NUMBER OF SECTIONS

DOOR HEIGHT	NUMBER OF 21" SECTIONS	NUMBER OF 24" SECTIONS	TOTAL SECTIONS
6'		3	3
7'	4		4
7'3"	3	1	4
7'6"	2	2	4
7'9"	1	3	4
8'		4	4
8'9"	5		5
9"	4	1	5
9'3"	3	2	5
9'6"	2	3	5
9'9"	1	4	5
10'		5	5

CHARCOAL RC-16 NUMBER OF SECTIONS

DOOR HEIGHT	NUMBER OF 21" SECTIONS	NUMBER OF 21.6" SECTIONS	NUMBER OF 24" SECTIONS	TOTAL SECTIONS
7'	4			4
8'			4	4
9"		4		4
10'			5	5

GLASS

PLAIN LITE
Available in 5/8” ThermoPane.

Please Note: Glazing and window options are only available in the RC-16 product line.

ELITE GLASS

SNAP-IN DECORATIVE DESIGN

Snap-in available in 38”x14”
Available in 5/8” ThermoPane.

AVAILABLE SNAP-IN COLOURS

SNAP-IN DESIGN

INLAID MUNTIN BARS

Window size available in 38”x14”
Available in 5/8” ThermoPane.

MUNTIN BAR COLOURS

MUNTIN BAR DESIGN

AVAILABLE FRAME COLOURS
