FLUSH

The Flush garage door series conveys a progressively modern aesthetic while maintaining exceptional construction and thermal efficiency.

ABOUT OUR COLOURS

Every door is finished with a factory applied, baked on, two coat polyester paint finish giving years of maintenance free operation.

The door may also be painted to suit the exterior colour specifications of your home.

Click here for Painting Instructions

Note: The accuracy of the colours displayed may vary depending on the settings of your monitor. To obtain an exact colour reference, please contact a Steel-Craft dealer for colour samples.

AVAILABLE IN FL-138

AVAILABLE IN FL-134

ELITE FINISHES

Please Note: Elite Finish in Charcoal is only available in standard heights of 7′, 8′, 9′ & 10′.

FL-138 DOOR SIZE CHART The FL-138 is 1-1/8” thick and comes in standard heights of 6’ through 10’, with the standard headroom requirement of 12”, however low headroom kits are available for special applications.
FL-134 DOOR SIZE CHART The FL-134 is 1-3/4” thick and comes in standard heights of 6’ through 10’. Door heights of 10’H & over require 2” commercial hardware. Headroom requirements may increase with Door Operators.

Height

6'
7'
7'3"
7'6"
7'9"
8'
8'9"
9'
9'3"
9'6"
9'9"
10'

8' wide

8'x6'
8'x7'
8'x7'3"
8'x7'6"
8'x7'9"
8'x8'
8'x8'9"
8'x9'
8'x9'3"
8'x9'6"
8'x9'9"
8'x10'

9' wide

9'x6'
9'x7'
9'x7'3"
9'x7'6"
9'x7'9"
9'x8'
9'x8'9"
9'x9'
9'x9'3"
9'x9'6"
9'x9'9"
9'x10'

10' wide

10'x6'
10'x7'
10'x7'3"
10'x7'6"
10'x7'9"
10'x8'
10'x8'9"
10'x9'
10'x9'3"
10'x9'6"
10'x9'9"
10'x10'

12' wide

12'x6'
12'x7'
12'x7'3"
12'x7'6"
12'x7'9"
12'x8'
12'x8'9"
12'x9'
12'x9'3"
12'x9'6"
12'x9'9"
12'x10'

16' wide

16'x6'
16'x7'
16'x7'3"
16'x7'6"
16'x7'9"
16'x8'
16'x8'9"
16'x9'
16'x9'3"
16'x9'6"
16'x9'9"
16'x10'

18' wide

18'x6'
18'x7'
18'x7'3"
18'x7'6"
18'x7'9"
18'x8'
18'x8'9"
18'x9'
18'x9'3"
18'x9'6"
18'x9'9"
18'x10'

NUMBER OF FL-138 SECTIONS

DOOR HEIGHT	NUMBER OF 21" SECTIONS	NUMBER OF 24" SECTIONS	TOTAL SECTIONS
6'		3	3
7'	4		4
7'3"	3	1	4
7'6"	2	2	4
7'9"	1	3	4
8'		4	4
8'9"	5		5
9"	4	1	5
9'3"	3	2	5
9'6"	2	3	5
9'9"	1	4	5
10'		5	5

Height

6'
7' *
7'3"
7'6"
7'9"
8' *
8'9"
9' *
9'3"
9'6"
9'9"
10' *

8' wide

8'x6'
8'x7'
8'x7'3"
8'x7'6"
8'x7'9"
8'x8'
8'x8'9"
8'x9'
8'x9'3"
8'x9'6"
8'x9'9"
8'x10'

9' wide

9'x6'
9'x7'
9'x7'3"
9'x7'6"
9'x7'9"
9'x8'
9'x8'9"
9'x9'
9'x9'3"
9'x9'6"
9'x9'9"
9'x10'

10' wide

10'x6'
10'x7'
10'x7'3"
10'x7'6"
10'x7'9"
10'x8'
10'x8'9"
10'x9'
10'x9'3"
10'x9'6"
10'x9'9"
10'x10'

12' wide

12'x6'
12'x7'
12'x7'3"
12'x7'6"
12'x7'9"
12'x8'
12'x8'9"
12'x9'
12'x9'3"
12'x9'6"
12'x9'9"
12'x10'

14' wide

14'x6'
14'x7'
14'x7'3"
14'x7'6"
14'x7'9"
14'x8'
14'x8'9"
14'x9'
14'x9'3"
14'x9'6"
14'x9'9"
14'x10'

16' wide

16'x6'
16'x7'
16'x7'3"
16'x7'6"
16'x7'9"
16'x8'
16'x8'9"
16'x9'
16'x9'3"
16'x9'6"
16'x9'9"
16'x10'

18' wide

18'x6'
18'x7'
18'x7'3"
18'x7'6"
18'x7'9"
18'x8'
18'x8'9"
18'x9'
18'x9'3"
18'x9'6"
18'x9'9"
18'x10'

* Elite Finish in Charcoal is only available in standard heights of 7′, 8′, 9′ and 10′.

NUMBER OF FL-134 SECTIONS

DOOR HEIGHT	NUMBER OF 21" SECTIONS	NUMBER OF 24" SECTIONS	TOTAL SECTIONS
6'		3	3
7'	4		4
7'3"	3	1	4
7'6"	2	2	4
7'9"	1	3	4
8'		4	4
8'9"	5		5
9"	4	1	5
9'3"	3	2	5
9'6"	2	3	5
9'9"	1	4	5
10'		5	5

CHARCOAL NUMBER OF SECTIONS

DOOR HEIGHT	NUMBER OF 21" SECTIONS	NUMBER OF 21.6" SECTIONS	NUMBER OF 24" SECTIONS	TOTAL SECTIONS
7'	4			4
8'			4	4
9'		4		4
10'			5	5

GLASS

PLAIN LITE
Available in 5/8” ThermoPane.

ELITE GLASS

INLAID MUNTIN BARS

Window size available in 26”x14” and 38″x14″
Available in 5/8” ThermoPane.

26"x14"

AVAILABLE FRAME COLOURS

MUNTIN BAR COLOURS

MUNTIN BAR DESIGN

38"x14"

AVAILABLE FRAME COLOURS

MUNTIN BAR COLOURS

MUNTIN BAR DESIGN

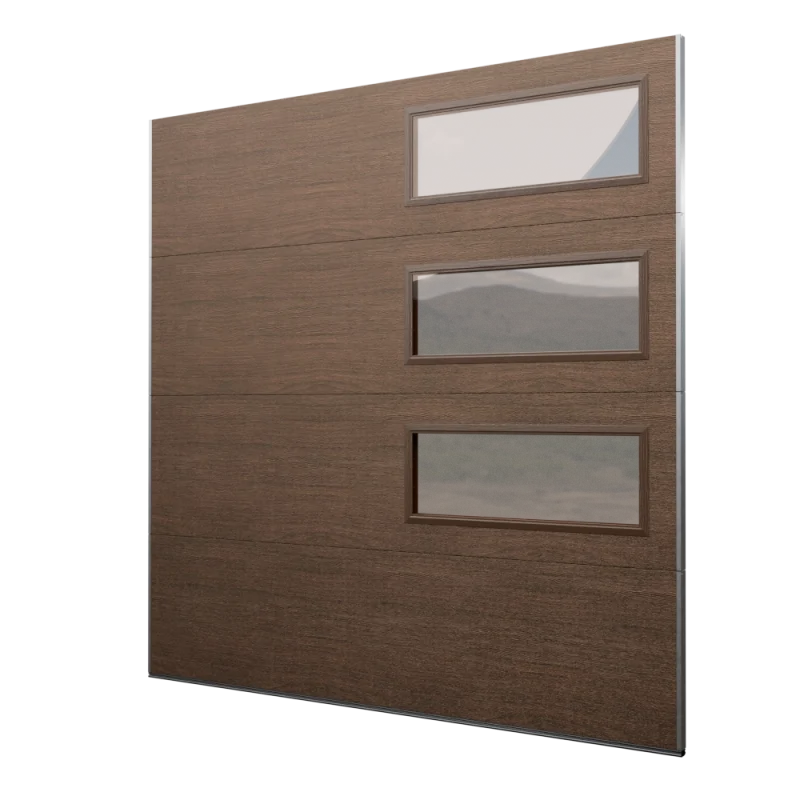

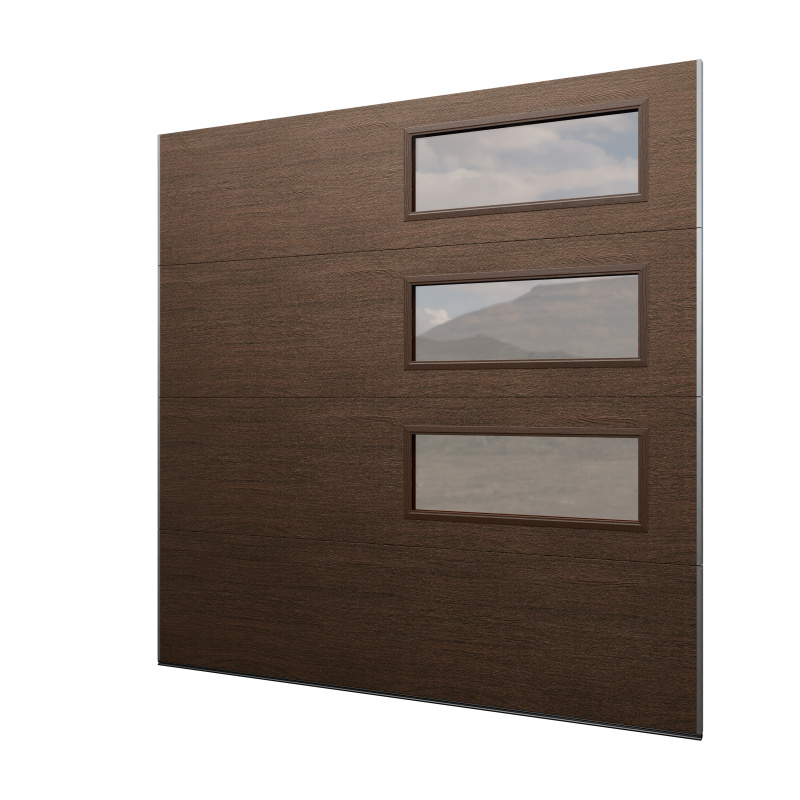

24"x6" WINDOW PLACEMENT OPTIONS

AVAILABLE FRAME COLOURS

WINDOW PLACEMENT

Available in 5/8” ThermoPane.
Aligmnent available in Left Vertical Column, Right Vertical Column and Top Horizontal Row.

Note: Bottom section window will only be installed on the top of the section.
