CARRIAGE-CRAFT

The Carriage-Craft garage door series, distinct for connecting modern technology with a more traditional aesthetic, delivers immaculate construction, and thermal efficiency.

HP-Angledoor-Carragecraft

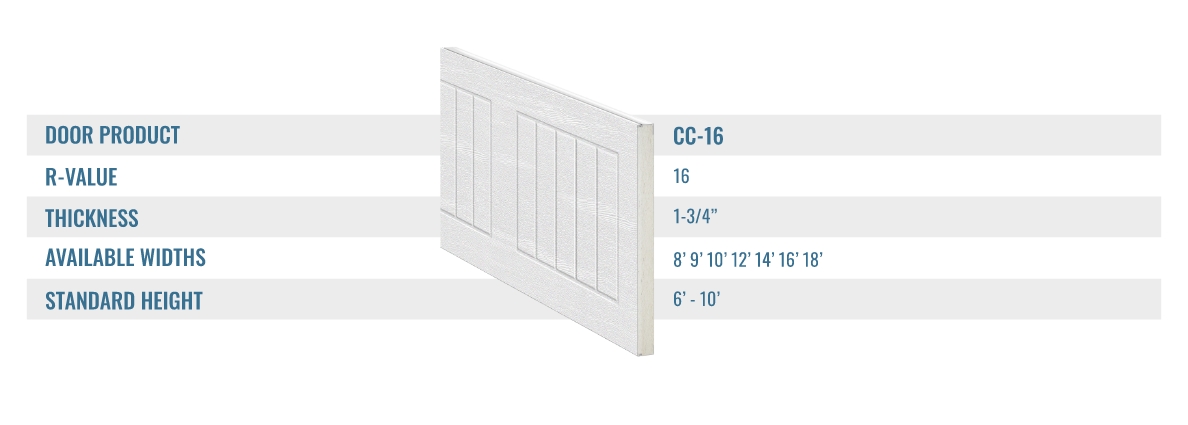

CC-16 DOOR SIZE CHART

The CC-16 is 1-3/4” thick and comes in standard heights of 6’ through 10’. Door heights of 10’H & over require 2” commercial hardware. Headroom requirements may increase with Door Operators.

Height

  • 6'
  • 6'7"
  • 6'8"
  • 6'10"
  • 7' *
  • 7'3"
  • 7'6"
  • 7'9"
  • 8' *
  • 8'2"
  • 8'4"
  • 8'5"
  • 8'7"
  • 8'9"
  • 9' *
  • 9'3"
  • 9'6"
  • 9'7"
  • 9'9"
  • 9'11"
  • 10' *

8' wide

  • 8'x6'
  • 8'x6'7"
  • 8'x6'8"
  • 8'x6'10"
  • 8'x7'
  • 8'x7'3"
  • 8'x7'6"
  • 8'x7'9"
  • 8'x8'
  • 8'x8'2"
  • 8'x8'4"
  • 8'x8'5"
  • 8'x8'7"
  • 8'x8'9"
  • 8'x9'
  • 8'x9'3"
  • 8'x9'6"
  • 8'x9'7"
  • 8'x9'9"
  • 8'x9'11"
  • 8'x10'

9' wide

  • 9'x6'
  • 9'x6'7"
  • 9'x6'8"
  • 9'x6'10"
  • 9'x7'
  • 9'x7'3"
  • 9'x7'6"
  • 9'x7'9"
  • 9'x8'
  • 9'x8'2"
  • 9'x8'4"
  • 9'x8'5"
  • 9'x8'7"
  • 9'x8'9"
  • 9'x9'
  • 9'x9'3"
  • 9'x9'6"
  • 9'x9'7"
  • 9'x9'9"
  • 9'x9'11"
  • 9'x10'

10' wide

  • 10'x6'
  • 10'x6'7"
  • 10'x6'8"
  • 10'x6'10"
  • 10'x7'
  • 10'x7'3"
  • 10'x7'6"
  • 10'x7'9"
  • 10'x8'
  • 10'x8'2"
  • 10'x8'4"
  • 10'x8'5"
  • 10'x8'7"
  • 10'x8'9"
  • 10'x9'
  • 10'x9'3"
  • 10'x9'6"
  • 10'x9'7"
  • 10'x9'9"
  • 10'x9'11"
  • 10'x10'

12' wide

  • 12'x6'
  • 12'x6'7"
  • 12'x6'8"
  • 12'x6'10"
  • 12'x7'
  • 12'x7'3"
  • 12'x7'6"
  • 12'x7'9"
  • 12'x8'
  • 12'x8'2"
  • 12'x8'4"
  • 12'x8'5"
  • 12'x8'7"
  • 12'x8'9"
  • 12'x9'
  • 12'x9'3"
  • 12'x9'6"
  • 12'x9'7"
  • 12'x9'9"
  • 12'x9'11"
  • 12'x10'

14' wide

  • 14'x6'
  • 14'x6'7"
  • 14'x6'8"
  • 14'x6'10"
  • 14'x7'
  • 14'x7'3"
  • 14'x7'6"
  • 14'x7'9"
  • 14'x8'
  • 14'x8'2"
  • 14'x8'4"
  • 14'x8'5"
  • 14'x8'7"
  • 14'x8'9"
  • 14'x9'
  • 14'x9'3"
  • 14'x9'6"
  • 14'x9'7"
  • 14'x9'9"
  • 14'x9'11"
  • 14'x10'

16' wide

  • 16'x6'
  • 16'x6'7"
  • 16'x6'8"
  • 16'x6'10"
  • 16'x7'
  • 16'x7'3"
  • 16'x7'6"
  • 16'x7'9"
  • 16'x8'
  • 16'x8'2"
  • 16'x8'4"
  • 16'x8'5"
  • 16'x8'7"
  • 16'x8'9"
  • 16'x9'
  • 16'x9'3"
  • 16'x9'6"
  • 16'x9'7"
  • 16'x9'9"
  • 16'x9'11"
  • 16'x10'

18' wide

  • 18'x6'
  • 18'x6'7"
  • 18'x6'8"
  • 18'x6'10"
  • 18'x7'
  • 18'x7'3"
  • 18'x7'6"
  • 18'x7'9"
  • 18'x8'
  • 18'x8'2"
  • 18'x8'4"
  • 18'x8'5"
  • 18'x8'7"
  • 18'x8'9"
  • 18'x9'
  • 18'x9'3"
  • 18'x9'6"
  • 18'x9'7"
  • 18'x9'9"
  • 18'x9'11"
  • 18'x10'

* Elite Finish in Charcoal is only available in standard heights of 7', 8', 9' & 10'.

NUMBER OF SECTIONS
DOOR
HEIGHT
NUMBER OF
19.2" SECTIONS
NUMBER OF
21" SECTIONS
NUMBER OF
24" SECTIONS
TOTAL
SECTIONS
6' 3 3
6'7" 3 1 4
6'8" 2 2 4
6'10" 1 3 4
7' 4 4
7'3" 3 1 4
7'6" 2 2 4
7'9" 1 3 4
8' 4 4
8'2" 4 1 5
8'4" 3 2 5
8'5" 2 3 5
8'7" 1 4 5
8'9" 5 5
9" 4 1 5
9'3" 3 2 5
9'6" 2 3 5
9'7" 6 6
9'9" 1 4 5
9'11" 4 2 6
10' 5 5
CHARCOAL NUMBER OF SECTIONS
DOOR
HEIGHT
NUMBER OF
21" SECTIONS
NUMBER OF
21.6" SECTIONS
NUMBER OF
24" SECTIONS
TOTAL
SECTIONS
7' 4 4
8' 4 4
9' 5 5
10' 5 5

ABOUT OUR COLOURS

Every door is finished with a factory applied, baked on, two coat polyester paint finish giving years of maintenance free operation.

The door may also be painted to suit the exterior colour specifications of your home.

Click here for Painting Instructions

Note: The accuracy of the colours displayed may vary depending on the settings of your monitor. To obtain an exact colour reference, please contact a Steel-Craft dealer for colour samples.

AVAILABLE IN CC-16
White
Sable Grey

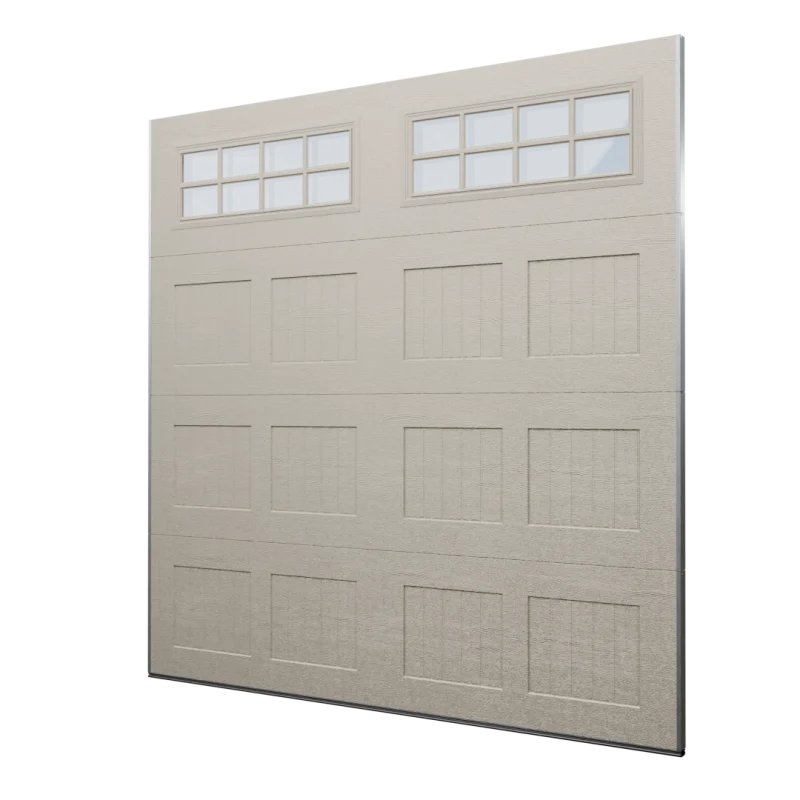

Sandstone
Brown
CC-16 ELITE FINISHES
Walnut
GLASS

PLAIN LITE
Available in 5/8” ThermoPane.

Clear
Satin Texture
ELITE GLASS
Bronze
Dark Tint
SNAP-IN DECORATIVE DESIGN

Window size available in 38”x14”
Available in 5/8” ThermoPane.

AVAILABLE SNAP-IN COLOURS
White
Sandstone
Brown
SNAP-IN DESIGN
Cascade
Stockton
Somerton
Waterton
Stockbridge
Wynbridge
INLAID MUNTIN BARS

Window size available in 38”x14”
Available in 5/8” ThermoPane.

MUNTIN BAR COLOURS
White
Brass
Pewter
Bronze
Black
MUNTIN BAR DESIGN
Regal Wide
Stanton Wide
Provincial Wide
AVAILABLE FRAME COLOURS
White
Sable Grey
Sandstone
Brown
Espresso
Black
HINGES

16″ Tuscan Forged

Black Iron Hinge

16″ Sicilian Forged

Black Iron Hinge

16″ Umbria Forged

Black Iron Hinge

HANDLES

San Marino

Handle

Veneto Stamped

Steel Handle

Milano Forged

Black Iron Handle
