Steel-Craft Door Products Ltd.

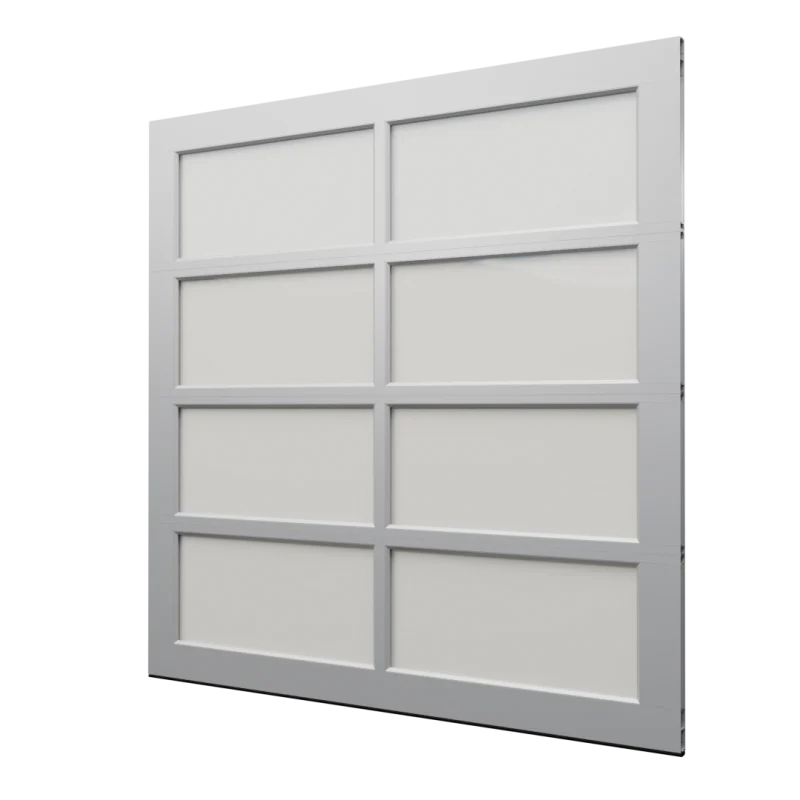

Esteem Series

Steel-Craft’s Esteem Series of aluminum garage doors merges quality with modern design. Beloved by architects and designers looking to give homes a unique touch, our Esteem doors are highly customizable.

Esteem doors are available in a wide variety of colours. Feel free to create waves, radiate a warm glow, or simply let the sun shine in. Distinction is easy to achieve with this beautiful, modern garage door.

We seal our aluminum panels to increase energy efficiency, and our transparent panels are sealed to the frame with a glazing compound for air-tightness. Esteem doors open and close quietly and smoothly thanks to high-quality parts and a purpose-made counterbalance system. Our unnecessary warranty covers Esteem Series doors.

Find a Dealer   Design Your Door

Styles

Standard Vision Lites Options

Choose from Tempered Glass, Polycarbonate or Insulated Aluminum Panel. All materials are sealed to the frame with glazing compound and held with rigid PVC mouldings.

Glass

Available in tempered single pane and tempered sealed units. Glass options include Clear, Satin Privacy (Frosted), Dark Tint Privacy, Bronze Reflective and Dark Tint Clear.

Clear Clear
Satin Privacy Satin Privacy
Dark Tint Privacy Dark Tint Privacy
Bronze Reflective Bronze Reflective
Dark Tint Clear Dark Tint Clear
Thermoclear Polycarbonate

Available in triple wall 16mm. Colour options include Clear, Bronze, Blue and Green.

Clear Lexan Clear Lexan
Bronze Lexan Bronze Lexan
Blue Lexan Blue Lexan
Green Lexan Green Lexan
Standard Anodized Finish

Additional custom anodizing colours are available, please consult a Steel-Craft Dealer for details.

Clear Clear

Note: The glazing material (Thermoclear®) used is ideal for humid environments, however it differs from glass in that it's not sealed, therefore condensation may form in the cellular walls when interior/exterior temperatures are such that dew point temperatures are created (usually in periods of cooler weather). This condensation usually disappears when warmer weather returns.

Woodgrain Finish Colour Options

Highlight the classic feel of your home while benefitting from the durability of an aluminum garage door. These doors have a low-maintenance finish that requires no staining or painting and, unlike real wood, they will not warp, shrink, peel, or crack.

Cedar Woodgrain Cedar Woodgrain
Walnut Woodgrain Walnut Woodgrain

Standard Painting Colour Options

Matte Finish
Ano-Light Bronze Ano-Light Bronze
Ano-Medium Bronze Ano-Medium Bronze
Ano-Dark Bronze Ano-Dark Bronze
Ano-Black Ano-Black
Gloss Finish
Black
Charcoal
Light Brown
Dark Brown
Sable Grey
Sandstone
Oyster Grey
Linen
Light Green
Dark Green
Light Blue
Dark Blue
Red

For a full selection of custom pane colours, please contact a Steel-Craft dealer.


Note: Colour representation may not be accurate. Exact colour matches can be requested from a Steel-Craft dealer.

Features
WEATHERSTRIPPING
  • Bottom weatherstripping: U-type arctic grade vinyl
  • Section interface: arctic grade vinyl bubble-shaped weatherstrip at all section meeting rails
  • Jamb: anodized or painted aluminum with two-point flexible arctic grade vinyl weatherstrip
  • Header: anodized or painted aluminum with two-point flexible arctic grade vinyl weatherstrip
DOOR FACE HARDWARE
  • Graduated end hinges and centre hinges made from galvanized steel
  • Heavy duty rollers with heat-treated and outer races with 10 floating ball bearings.
STRUTTING
  • Doors over 11'0" in width shall be reinforced with 16Ga galvanized steel "Z" brace per section
  • Strutting required for doors wider than 3,353 mm
FRAMES
  • Thickness: 1.8mm/0.071”; 3mm/0.118” at fastener locations
  • Standard Top/Bottom/End Stiles: 162mm/6.375”
  • Intermediate Stiles: 76mm/3”
INSULATED ALUMINUM PANEL
  • 1.27 mm thick aluminum sheet material insulated and sealed to door frame
FINISH
  • Standard: #17 clear anodized Class II and is in accordance with AA-M12C22A31 (Aluminum Association) specifications.
  • Painted product (special order) powdercoated to AAMA 2603 standards.
TEMPERED GLASS, POLYCARBONATE OR INSULATED ALUMINUM PANEL
  • All glazing materials sealed to door frame with butyl tape and held securely with rigid PVC snap-in mouldings.
COUNTERBALANCE SYSTEM
  • Class II oil tempered ASTM A229 wire, minimum 10,000 cycle torsion springs on continuous steel shaft
  • Aircraft quality galvanized lift cables with a minimum safety factor of 7 to 1
TRACKS
  • 50 mm or 75 mm wide galvanized steel tracks
Dimensions
Four Section - 2 Panel
8’ x 7’
8’ x 8’
9’ x 7’
9’ x 8’
Four Section - 3 Panel
10’ x 7’
10’ x 8’
12’ x 7’
12’ x 8’
Four Section - 4 Panel
14’ x 7’
14’ x 8’
16’ x 7’
16’ x 8’
Four Section - 5 Panel
18’ x 7’
18’ x 8’
