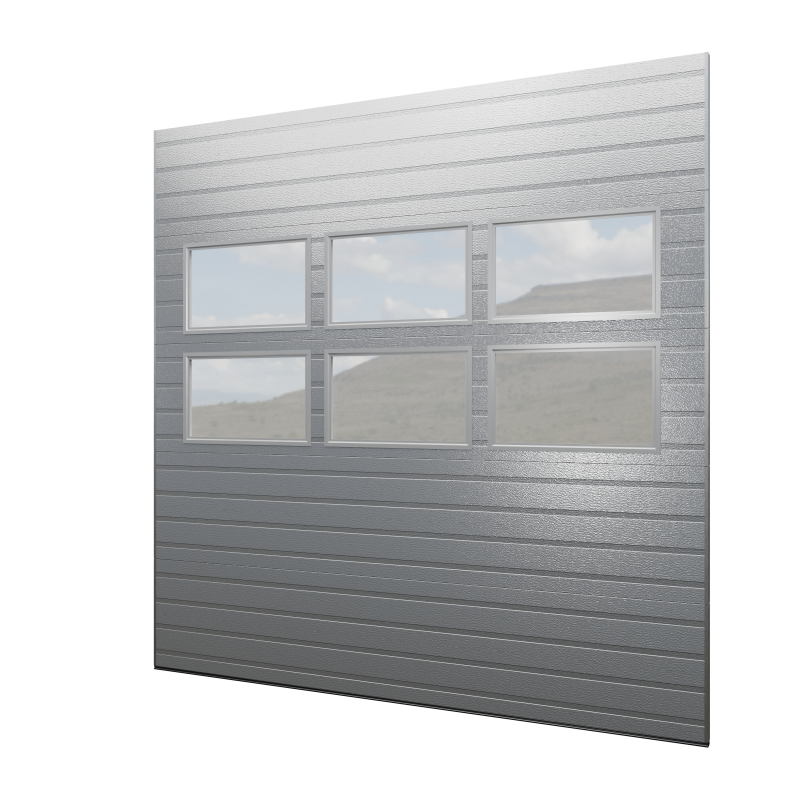

SC-INDUSTRIAL

SC Industrial is engineered to deliver advanced performance in commercial and industrial applications. The SC Industrial’s two-inch thick, polyurethane insulated panels have an R-Value of 19 that answers the demand for greater thermal efficiency, durability and design flexibility. This door is the ideal choice for protection against heat or cold for virtually all commercial building applications.

ABOUT OUR COLOURS

Every door is finished with a factory applied, baked on, two coat polyester paint finish giving years of maintenance free operation.

Doors may be painted to suit the exterior colour specifications.

Note: The accuracy of the colours displayed may vary depending on the settings of your monitor. To obtain an exact colour reference, please contact a Steel-Craft dealer for colour samples.

White Stucco
Aluminum Stucco
Sable Grey Stucco

DOOR FEATURES

  • Flexible top seal keeps cold and debris out.
  • Section weather seals keep wind and cold out.
  • PVC retainer aids in door rigidity.
  • Top-quality Canadian galvanized steel is durable and rust resistant.
  • Two-coat exterior polyester paint finish on inner and outer skin is extremely durable.
  • Therm-O-Break design reduces cold/heat/moisture conductivity.
  • Mechanically interlocked front and back skins increase strength.
  • Continuous steel overlap secures hardware attachments.
  • Flexible floor seal conforms to minor irregularities to keep out cold and debris.
  • Insulated windows feature sealed lites and high-impact polymer frames.
  • Heavy-duty rollers and hardware are durable and make for easy installation.
  • Triple Pane Sealed Windows

SC-INDUSTRIAL DOOR SIZE CHART

Height

  • 6′
  • 7′
  • 8′
  • 9′
  • 10′
  • 11′
  • 12′
  • 14′
  • 16′

7′ wide

  • 7’x6′
  • 7’x7′
  • 7’x8′
  • 7’x9′
  • 7’x10′
  • 7’x11′
  • 7’x12′
  • 7’x14′
  • 7’x16′

8′ wide

  • 8’x6′
  • 8’x7′
  • 8’x8′
  • 8’x9′
  • 8’x10′
  • 8’x11′
  • 8’x12′
  • 8’x14′
  • 8’x16′

9′ wide

  • 9’x6′
  • 9’x7′
  • 9’x8′
  • 9’x9′
  • 9’x10′
  • 9’x11′
  • 9’x12′
  • 9’x14′
  • 9’x16′

10′ wide

  • 10’x6′
  • 10’x7′
  • 10’x8′
  • 10’x9′
  • 10’x10′
  • 10’x11′
  • 10’x12′
  • 10’x14′
  • 10’x16′

12′ wide

  • 12’x6′
  • 12’x7′
  • 12’x8′
  • 12’x9′
  • 12’x10′
  • 12’x11′
  • 12’x12′
  • 12’x14′
  • 12’x16′

14′ wide

  • 14’x6′
  • 14’x7′
  • 14’x8′
  • 14’x9′
  • 14’x10′
  • 14’x11′
  • 14’x12′
  • 14’x14′
  • 14’x16′

16′ wide

  • 16’x6′
  • 16’x7′
  • 16’x8′
  • 16’x9′
  • 16’x10′
  • 16’x11′
  • 16’x12′
  • 16’x14′
  • 16’x16′

18′ wide

  • 18’x6′
  • 18’x7′
  • 18’x8′
  • 18’x9′
  • 18’x10′
  • 18’x11′
  • 18’x12′
  • 18’x14′
  • 18’x16′

20′ wide

  • 20’x6′
  • 20’x7′
  • 20’x8′
  • 20’x9′
  • 20’x10′
  • 20’x11′
  • 20’x12′
  • 20’x14′
  • 20’x16′

22′ wide

  • 22’x6′
  • 22’x7′
  • 22’x8′
  • 22’x9′
  • 22’x10′
  • 22’x11′
  • 22’x12′
  • 22’x14′
  • 22’x16′
.
Note: The weight of the door will determine the default track size. Door weight may vary once window kits and/or hardware are added. Any door weighing more than 749 lbs requires 3” track.
NUMBER OF SECTIONS
HEIGHT OF DOOR NUMBER OF 21″ SECTIONS NUMBER OF 24″ SECTIONS TOTAL SECTIONS
6′ 3 3
7′ 4 4
8′ 4 4
9′ 4 4
10′ 5 5
11′ 4 2 6
12′ 6 6
14′ 7 7
16′ 8 8
.

Height

  • 6′
  • 7′
  • 8′
  • 9′
  • 10′
  • 11′
  • 12′
  • 14′
  • 16′
  • 18′
  • 20′
  • 22′
  • 24′
  • 26′
  • 28′

7′ wide

  • 7’x6′
  • 7’x7′
  • 7’x8′
  • 7’x9′
  • 7’x10′
  • 7’x11′
  • 7’x12′
  • 7’x14′
  • 7’x16′
  • 7’x18′
  • 7’x20′
  • 7’x22′
  • 7’x24′
  • 7’x26′
  • 7’x28′

8′ wide

  • 8’x6′
  • 8’x7′
  • 8’x8′
  • 8’x9′
  • 8’x10′
  • 8’x11′
  • 8’x12′
  • 8’x14′
  • 8’x16′
  • 8’x18′
  • 8’x20′
  • 8’x22′
  • 8’x24′
  • 8’x26′
  • 8’x28′

9′ wide

  • 9’x6′
  • 9’x7′
  • 9’x8′
  • 9’x9′
  • 9’x10′
  • 9’x11′
  • 9’x12′
  • 9’x14′
  • 9’x16′
  • 9’x18′
  • 9’x20′
  • 9’x22′
  • 9’x24′
  • 9’x26′
  • 9’x28′

10′ wide

  • 10’x6′
  • 10’x7′
  • 10’x8′
  • 10’x9′
  • 10’x10′
  • 10’x11′
  • 10’x12′
  • 10’x14′
  • 10’x16′
  • 10’x18′
  • 10’x20′
  • 10’x22′
  • 10’x24′
  • 10’x26′
  • 10’x28′

12′ wide

  • 12’x6′
  • 12’x7′
  • 12’x8′
  • 12’x9′
  • 12’x10′
  • 12’x11′
  • 12’x12′
  • 12’x14′
  • 12’x16′
  • 12’x18′
  • 12’x20′
  • 12’x22′
  • 12’x24′
  • 12’x26′
  • 12’x28′

14′ wide

  • 14’x6′
  • 14’x7′
  • 14’x8′
  • 14’x9′
  • 14’x10′
  • 14’x11′
  • 14’x12′
  • 14’x14′
  • 14’x16′
  • 14’x18′
  • 14’x20′
  • 14’x22′
  • 14’x24′
  • 14’x26′
  • 14’x28′

16′ wide

  • 16’x6′
  • 16’x7′
  • 16’x8′
  • 16’x9′
  • 16’x10′
  • 16’x11′
  • 16’x12′
  • 16’x14′
  • 16’x16′
  • 16’x18′
  • 16’x20′
  • 16’x22′
  • 16’x24′
  • 16’x26′
  • 16’x28′

18′ wide

  • 18’x6′
  • 18’x7′
  • 18’x8′
  • 18’x9′
  • 18’x10′
  • 18’x11′
  • 18’x12′
  • 18’x14′
  • 18’x16′
  • 18’x18′
  • 18’x20′
  • 18’x22′
  • 18’x24′
  • 18’x26′
  • 18’x28′

20′ wide

  • 20’x6′
  • 20’x7′
  • 20’x8′
  • 20’x9′
  • 20’x10′
  • 20’x11′
  • 20’x12′
  • 20’x14′
  • 20’x16′
  • 20’x18′
  • 20’x20′
  • 20’x22′
  • 20’x24′
  • 20’x26′
  • 20’x28′

22′ wide

  • 22’x6′
  • 22’x7′
  • 22’x8′
  • 22’x9′
  • 22’x10′
  • 22’x11′
  • 22’x12′
  • 22’x14′
  • 22’x16′
  • 22’x18′
  • 22’x20′
  • 22’x22′
  • 22’x24′
  • 22’x26′
  • 22’x28′

24′ wide

  • 24’x6′
  • 24’x7′
  • 24’x8′
  • 24’x9′
  • 24’x10′
  • 24’x11′
  • 24’x12′
  • 24’x14′
  • 24’x16′
  • 24’x18′
  • 24’x20′
  • 24’x22′
  • 24’x24′
  • 24’x26′
  • 24’x28′

26′ wide

  • 26’x6′
  • 26’x7′
  • 26’x8′
  • 26’x9′
  • 26’x10′
  • 26’x11′
  • 26’x12′
  • 26’x14′
  • 26’x16′
  • 26’x18′
  • 26’x20′
  • 26’x22′
  • 26’x24′
  • 26’x26′
  • 26’x28′

28′ wide

  • 28’x6′
  • 28’x7′
  • 28’x8′
  • 28’x9′
  • 28’x10′
  • 28’x11′
  • 28’x12′
  • 28’x14′
  • 28’x16′
  • 28’x18′
  • 28’x20′
  • 28’x22′
  • 28’x24′
  • 28’x26′
  • 28’x28′

30′ wide

  • 30’x6′
  • 30’x7′
  • 30’x8′
  • 30’x9′
  • 30’x10′
  • 30’x11′
  • 30’x12′
  • 30’x14′
  • 30’x16′
  • 30’x18′
  • 30’x20′
  • 30’x22′
  • 30’x24′
  • 30’x26′
  • 30’x28′
.
NUMBER OF SECTIONS
HEIGHT OF DOOR NUMBER OF 21″ SECTIONS NUMBER OF 24″ SECTIONS TOTAL SECTIONS
6′ 3 3
7′ 4 4
8′ 4 4
9′ 4 4
10′ 5 5
11′ 4 2 6
12′ 6 6
14′ 7 7
16′ 8 8
18′ 9 9
20′ 10 10
22′ 11 11
24′ 12 12
26′ 13 13
28′ 14 14
.
VISION LITE - Sealed Unit
FRAME COLOUR
Only available in black: 23″x7″, 24″ x 12″, 34″x16″
Black

MAX VIEW FRAME COLOURS
Custom frame colours available upon request.

White Stucco
Aluminum (anodized)

Only available in black:
23″x7″
24″ x 12″
34″x16″

MAX VIEW FRAME COLOURS
Custom frame colours available upon request.

SEALED GLASS

Available in Single Pane, Thermo Sealed Units, and Triple Pane.
Tri-Seal upgrade available on sealed units.

Clear
Satin Texture

Note: Consult a Steel-Craft dealer on the wide variety of glass options and special orders.

DOOR FACE

Single end
Double end 17’w+

14ga single end
11ga single end
14ga double end 17’w+
11ga double end 1000lbs
14ga intermediate

2” 10 ball short stem
3” 10 ball short stem
2” 10 ball long stem
3” 10 ball long stem

2” nylon sealed bearing
3” UHMW sealed bearing
3” rubber sealed bearing
3” nylon stainless shaft

Standard duty single
Standard duty double 17’w+
Heavy duty double 1300lbs

Standard duty
Heavy duty 1300lbs
Heavy duty fail safe

Sidelock
Interior barlock
Exterior keyed barlock

Tub handle
PVC hand grip
Handle step plate

3”
4”
5”

DASMA PVCP Standard
Available to increase windload capacities

WEATHERSTRIP

3” U-type
4” U-type

2” top flap
3” top flap – 17’w+

Steel/vinyl
PVC/vinyl

Bottom PVC V
Bottom Aluminum L
TOP PVC V

GUIDES

Standard lift
High lift
Vertical lift
Low lift double track
(all available to allow following the roof slope if needed).
Horizontal reinforcing engineered for specific size requirements.

Bracket mount
Angle mount continuous 13ga
Angle mount reverse 13ga

TORSION

Standard 10,000 cycle
Optional increased cycle

(engineered for specific requirements)

14ga galvanized tube 1”
Cold roll solid shaft 1”
Cold roll solid shaft 1-1/4”

Standard flange bearing 1”
Heavy duty flange bearing 1”
2 bolt cast flange bearing 1”
Centre plate flange bearing 1-1/4”
End plate flange bearing 1-1/4”
2 bolt cast flange bearing 1-1/4”

(engineered for specific weight requirements)

DOOR FACE

Single end
Double end 17’w+

14ga single end
11ga single end*
14ga double end 17’w+
11ga double end 1000lbs
14ga intermediate

2” 10 ball short stem
3” 10 ball short stem
2” 10 ball long stem
3” 10 ball long stem

2” nylon sealed bearing*
3” UHMW sealed bearing*
3” rubber sealed bearing*
3” nylon stainless shaft*

Standard duty single
Standard duty double 17’w+
Heavy duty double 1300lbs*

Standard duty
Heavy duty 1300lbs
Heavy duty fail safe*

Sidelock
Interior barlock*
Exterior keyed barlock*

Tub handle*
PVC hand grip*
Handle step plate*

3”*
4”*
5”*

DASMA PVCP Standard
Available to increase windload capacities*

WEATHERSTRIP

3” U-type
4” U-type*

2” top flap
3” top flap – 17’w+

Steel/vinyl
PVC/vinyl*

Bottom PVC V
Bottom Aluminum L*
TOP PVC V

GUIDES

Standard lift
High lift*
Vertical lift*
Low lift double track*
(all available to allow following the roof slope if needed).
Horizontal reinforcing engineered for specific size requirements.

Bracket mount
Angle mount continuous 13ga*
Angle mount reverse 13ga*

TORSION

Standard 10,000 cycle
Optional increased cycle*

(engineered for specific requirements)

14ga galvanized tube 1”
Cold roll solid shaft 1”
Cold roll solid shaft 1-1/4” *

Standard flange bearing 1”
Heavy duty flange bearing 1” *
2 bolt cast flange bearing 1” *
Centre plate flange bearing 1-1/4” *
End plate flange bearing 1-1/4”
2 bolt cast flange bearing 1-1/4” *

(engineered for specific weight requirements)
